Product Detailed Parameters
- Description：CMC 3.3MH 520MA 2LN SMD
- Series：-
- Mfr：Mentech Technology USA Inc.
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：520mA
- DC Resistance (DCR) (Max)：360mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.374" L x 0.350" W (9.50mm x 8.90mm)
- Height (Max)：0.220" (5.60mm)
- Package / Case：-
- Inductance @ Frequency：3.3 mH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

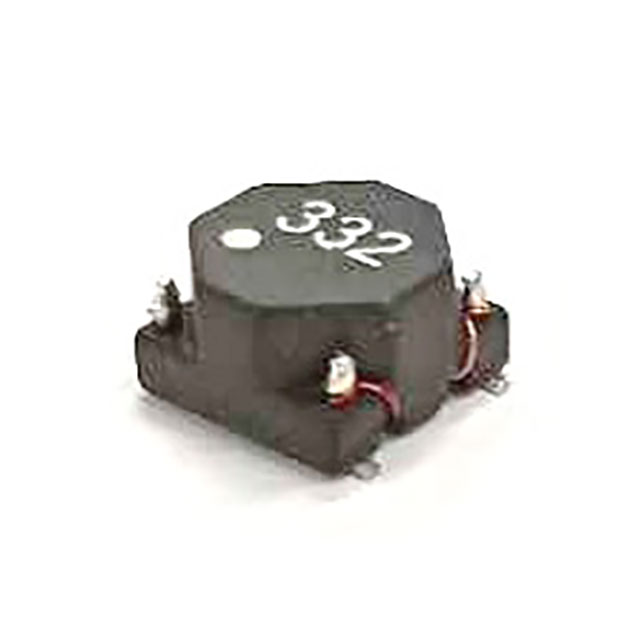

The CM633SG332N is a surface mount common mode choke manufactured by Mentech Technology USA Inc. It features a two-line configuration designed for filtering high-frequency noise on signal lines. The component has an inductance of 3.3 mH measured at 100 kHz and supports a maximum current rating of 520 mA. Its direct current resistance (DCR) is specified with a maximum value of 360 milliohms. This device is RoHS compliant and lead-free, suitable for compact electronic designs requiring efficient electromagnetic interference suppression.
Feature Summary
- Filters high-frequency noise on signal lines
- Surface mount construction for automated assembly
- RoHS compliant and lead-free manufacturing
Applications
- Signal line noise suppression
- Electromagnetic interference filtering
- Compact electronic circuit design
Procurement Notes
Verify the exact part number CM633SG332N against official Mentech Technology USA Inc. documentation to confirm specifications. Ensure compatibility with surface mount assembly processes. Check for RoHS compliance status if required by specific regulatory standards. Confirm current ratings and inductance values match system requirements before procurement.
Selection Notes
Select this component when designing circuits that require surface mount common mode chokes for signal integrity. Consider the 520 mA current rating and 360 milliohm DCR for power loss calculations. Evaluate the 3.3 mH inductance at 100 kHz for appropriate noise filtering frequencies. Ensure the physical footprint matches the printed circuit board layout constraints.
Part Context
Mentech Technology USA Inc. specializes in electronic components including transformers and inductors. The company focuses on research, development, and production of passive components. This product falls under the category of electronic filters and common mode chokes, supporting various industrial and consumer electronics applications through reliable filtering solutions.
