Product Detailed Parameters

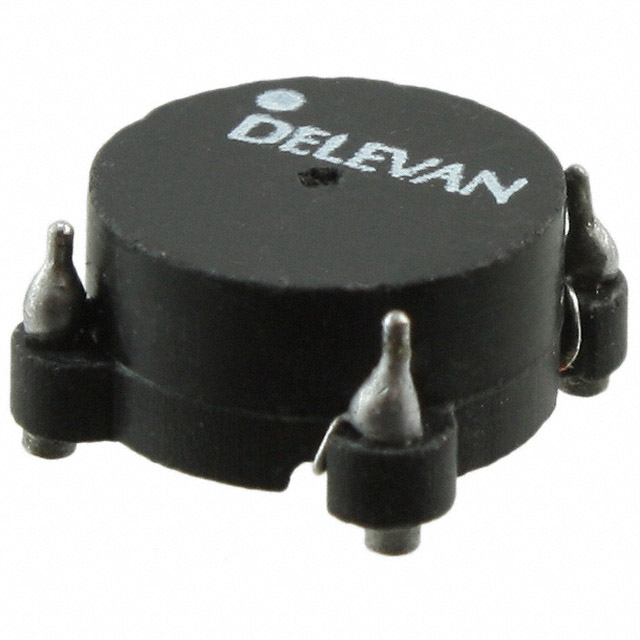

- Description：CMC 1MH 900MA 2LN SMD
- Series：CM6350
- Mfr：Delevan
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：900mA
- DC Resistance (DCR) (Max)：130mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.360" L x 0.360" W (9.14mm x 9.14mm)
- Height (Max)：0.210" (5.33mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：1 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview
The Delevan CM6350-105 is a surface-mount common mode choke designed for power line filtering applications. It features an inductance of 1 mH at 10 kHz with a tolerance of 25%. The component supports a maximum DC current rating of 900 mA and exhibits a maximum DC resistance of 130 mΩ. Physically, it measures 0.36 inches in length and width, with a height of 0.2 inches. This SMT device is available in cut tape or reel packaging formats.
Feature Summary
- Surface mount construction for automated PCB assembly
- Common mode noise suppression for power lines
- High inductance density within compact footprint
Applications
- Power supply input filtering
- EMI suppression in electronic equipment
- Signal integrity protection in data lines
Procurement Notes
Verify the specific suffix (e.g., R050) against the required packaging format, as standard listings may indicate bulk or reel options. Confirm RoHS compliance status directly from the manufacturer datasheet before integration. Ensure the 900 mA current rating meets the operational requirements of the target circuit to prevent saturation. Cross-reference the Mouser part number 807-CM6350R-105 for accurate ordering details.
Selection Notes
Select this component when space constraints require a low-profile SMT solution for common mode interference. The 1 mH value is suitable for higher frequency noise attenuation compared to lower inductance alternatives. Verify that the 130 mΩ DCR does not introduce excessive voltage drop in the application. Consider the 0.2-inch height limit for strict enclosure clearances.
Part Context
This component belongs to the CM6350 series of surface mount common mode chokes manufactured by API Delevan. The series offers a range of inductance values from 33 uH to 4700 uH. The CM6350-105 specifically targets applications requiring moderate inductance with high current handling capabilities in a small form factor.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference based on identical electrical parameters and physical dimensions.
