Product Detailed Parameters
- Description：CMC 68UH 4.2A 2LN SMD
- Series：CM6350R
- Mfr：Delevan
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：4.2A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.360" L x 0.360" W (9.14mm x 9.14mm)
- Height (Max)：0.210" (5.33mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：68 µH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview

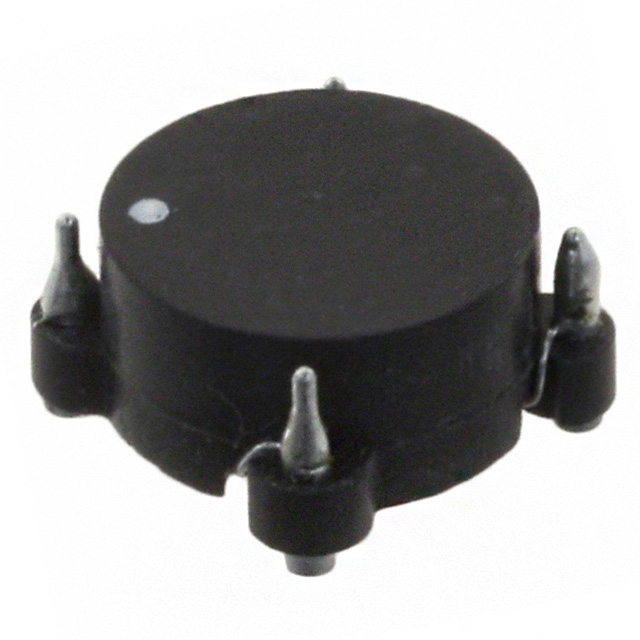

The Delevan CM6350R-683 is a surface-mount common mode choke designed for PCB integration. It features a single-channel configuration with an inductance of 68 uH and a tolerance of 25%. The component supports a maximum DC current of 4.2 A and exhibits a maximum DC resistance of 10 mOhms. Its physical dimensions are 9.14 mm in length, 9.14 mm in width, and 5.08 mm in height. The device operates within a temperature range of -55 C to +105 C and is available in reel or cut tape packaging.
Feature Summary
- Surface-mount construction for automated PCB assembly
- Single-channel design for common mode noise suppression
- Unshielded magnetic structure
Applications
- DC power line filtering
- Signal integrity protection in electronic circuits
- EMI reduction in compact electronic devices
Procurement Notes
Verify the specific ordering suffix (e.g., REEL) against the manufacturer's official documentation to confirm packaging type and quantity. Confirm RoHS compliance status directly with the supplier. Ensure the requested part number matches the exact electrical specifications required for the target application circuit.
Selection Notes
Select this component when a 68 uH inductance value is required for common mode noise attenuation. Verify that the 4.2 A current rating meets the circuit's operational requirements. Consider the unshielded nature of the device regarding potential magnetic interference with nearby components during layout.
Part Context
This component belongs to the Delevan CM6350R series of common mode chokes. The series offers various inductance values tailored for different filtering needs while maintaining consistent physical footprints. These components are engineered for high-current applications requiring reliable noise suppression in space-constrained environments.
Replacement Considerations
Consult official cross-reference data for verified substitutes. Ensure any replacement maintains identical inductance, current rating, and physical dimensions.
