Product Detailed Parameters

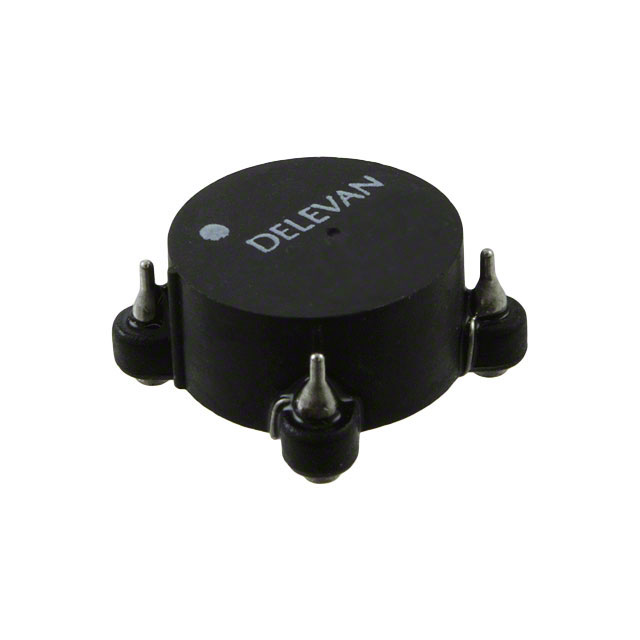

- Description：CMC 1MH 2.2A 2LN SMD
- Series：CM6460
- Mfr：Delevan
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2.2A
- DC Resistance (DCR) (Max)：49mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.530" L x 0.530" W (13.46mm x 13.46mm)
- Height (Max)：0.300" (7.62mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：1 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview
The Delevan CM6460-105 is a surface mount common mode choke designed for filtering electromagnetic interference in electronic circuits. It features an unshielded construction with SMD/SMT termination and PCB mounting style. The component provides an inductance of 1 mH (1000 uH) at 10 kHz, supporting a maximum DC current of 2.2 A. Its maximum DC resistance is specified at 49 mOhms. The device operates within a temperature range of -55 C to +105 C.
Feature Summary
- Surface mount common mode choke design
- Unshielded magnetic structure
- SMD/SMT termination for PCB integration
Applications
- Electromagnetic interference filtering
- Signal line protection
- Power supply noise suppression
Procurement Notes
Verify the specific manufacturer part number against official Delevan documentation to ensure compatibility with your circuit requirements. Confirm that the 2.2 A current rating and 49 mOhm DCR meet your system's electrical specifications. Check for any RoHS or REACH compliance details required by your region. Ensure the surface mount package dimensions fit your PCB layout constraints before finalizing procurement.
Selection Notes
Select this component when a 1 mH inductance value is required for common mode noise reduction in surface mount applications. Consider the 2.2 A current handling capability and low DC resistance for efficiency. Verify that the unshielded design does not interfere with nearby sensitive components due to potential magnetic field exposure. Ensure the operating temperature range aligns with your environmental conditions.
Part Context
The CM6460 series comprises surface mount common mode chokes manufactured by Delevan. These components are part of a broader family offering various inductance values from 100 uH to 10,000 uH. The CM6460-105 specifically denotes the 1 mH variant within this lineup, sharing similar physical and termination characteristics with other models in the series.
Replacement Considerations
Direct substitutes may include other Delevan CM6460 series variants with matching inductance and current ratings. Cross-reference with other manufacturers' surface mount common mode chokes ensuring identical 1 mH inductance, 2.2 A current, and compatible footprint dimensions.
