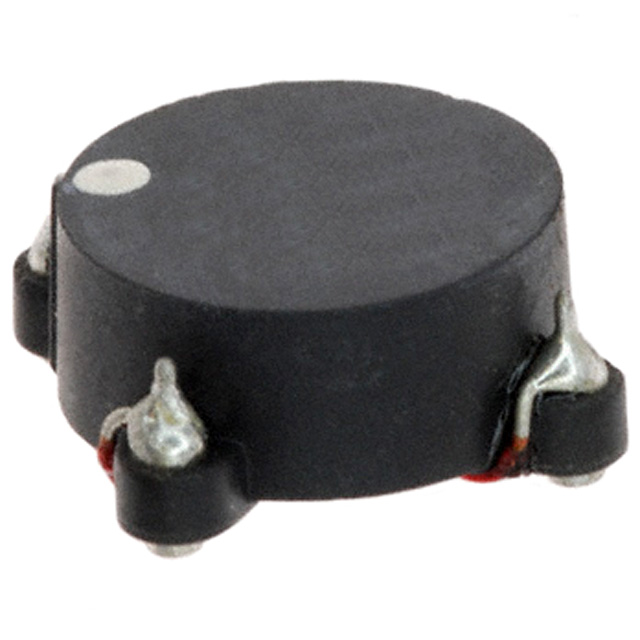

CM6560-106

$13.97

Description：CMC 10MH 550MA 2LN SMD
Series：CM6560
Mfr：Delevan
Package：Tape & Reel (TR)

SKU:bf03a40adc8f Category: Common Mode Chokes Brand: Delevan

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10MH 550MA 2LN SMD
Series：CM6560
Mfr：Delevan
Package：Tape & Reel (TR)
Filter Type：-
Number of Lines：2
Current Rating (Max)：550mA
DC Resistance (DCR) (Max)：530mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max)：0.320" (8.13mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：10 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

CM6560-106

Overview

The CM6560-106 is a surface-mount common mode choke manufactured by Delevan. It features an inductance of 10 mH at 10 kHz with a tolerance of 25%. The component has a maximum DC current rating of 530 mA and a maximum DC resistance of 530 milliohms. Designed for PCB mounting, it utilizes SMD/SMT termination types. The device is unshielded and belongs to the CM6560 series.

Feature Summary

Provides common mode noise suppression via high inductance filtering
Supports surface mount assembly for automated PCB integration
Unshielded construction suitable for standard electromagnetic environments

Applications

Signal line filtering in electronic circuits
Noise suppression on data transmission lines
EMI mitigation in consumer electronics

Procurement Notes

Verify the specific manufacturer part number against official Delevan documentation to ensure accuracy. Confirm that the required inductance value and current ratings align with the circuit design specifications before finalizing procurement decisions. Cross-reference datasheet parameters for thermal and electrical limits.

Selection Notes

Select this component when a 10 mH common mode choke is required for surface mount applications. Ensure the operating current does not exceed the 530 mA limit. Consider the unshielded nature of the device regarding nearby sensitive components. Verify footprint compatibility with the target PCB layout during the design phase.

Part Context

This component is part of the CM6560 series of common mode chokes produced by Delevan. The series offers various inductance values tailored for different filtering requirements. These devices are categorized under passive components, specifically inductors and chokes, designed for signal integrity management in printed circuit board assemblies.
