CM7560-104

Common Mode Chokes Overview

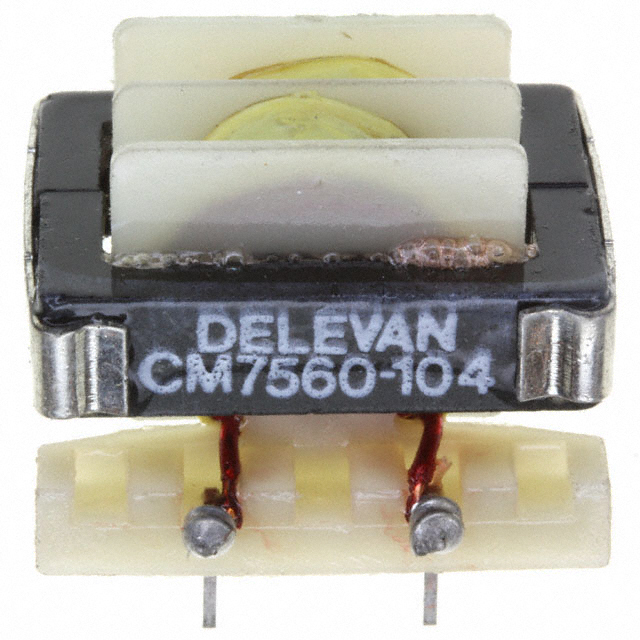

The Delevan CM7560-104 is a through-hole mount common mode choke designed for PCB integration. It features an inductance of 100 µH with a tolerance of ±25%, measured at a test frequency of 1 kHz. The component supports a maximum DC current of 5.5 A and exhibits a maximum DC resistance of 13 mΩ. Physical dimensions are 21.8 mm in length, 21.8 mm in width, and 21.1 mm in height. It operates within a temperature range of -55 °C to +125 °C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line data circuits
• Utilizes ferrite core material for effective electromagnetic interference filtering
• Designed for radial leaded through-hole PCB mounting

Common Mode Chokes Applications

• Data line filtering in electronic equipment
• Power supply input stages requiring common mode noise reduction
• Industrial control systems interfacing with sensitive signal lines

Common Mode Chokes Procurement Notes

Verify the specific RoHS compliance status as sources indicate conflicting information regarding lead content. Confirm the exact maximum DC current rating (2.8 A vs 5.5 A) with the manufacturer prior to procurement, as datasheet discrepancies exist between different distributor listings. Ensure the ordering suffix matches the required packaging format.

Common Mode Chokes Selection Notes

Select this component when high current handling capability is required alongside moderate inductance values for common mode noise attenuation. The through-hole package facilitates robust mechanical attachment on printed circuit boards. Evaluate thermal performance under continuous load conditions given the low DC resistance specification.

Common Mode Chokes Part Context

This part belongs to the CM7560 series of PC mount common mode chokes manufactured by API Delevan. The series offers various inductance options tailored for different filtering requirements while maintaining consistent physical footprints for design flexibility across product lines.

Common Mode Chokes Replacement Considerations

Cross-reference with other Delevan CM7560 variants such as CM7560-475 or CM7560-104K if different inductance or tolerance specifications are needed. Verify pin compatibility and thermal characteristics before substituting with components from other manufacturers.
