CM7560-106

Common Mode Chokes Overview

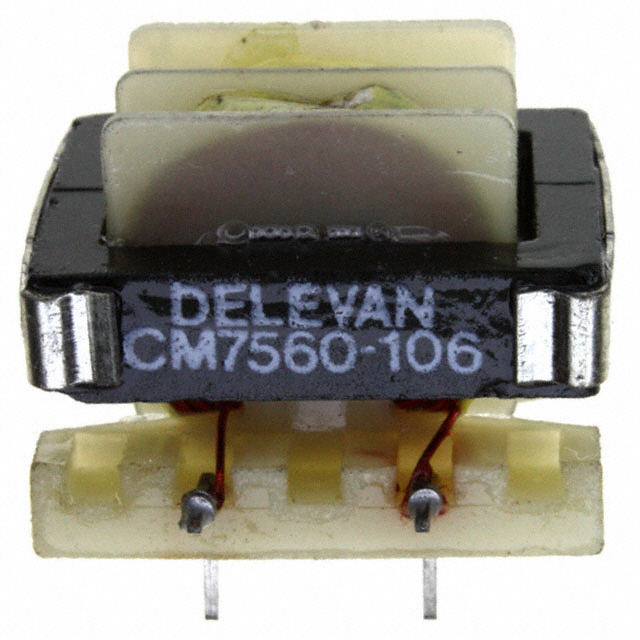

The Delevan CM7560-106 is a PC mount common mode choke belonging to the CM7560 series. It features a ferrite core and radial termination for through-hole mounting. Key electrical parameters include an inductance of 10,000 µH with a ±25% tolerance and a maximum DC resistance of 0.8 ohms. The component supports a maximum DC current of 1.2 A and operates within a temperature range of -55°C to +125°C. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Utilizes a ferrite core material for effective electromagnetic interference suppression.
• Designed for through-hole PCB mounting with radial leads.
• Provides high inductance values suitable for data line filtering applications.

Common Mode Chokes Applications

• Data line filtering
• Common mode noise suppression
• Electromagnetic interference mitigation

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as API Delevan and Delevan are associated with this part number. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer. Ensure the ordering suffix matches the required inductance value and physical package specifications before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for common mode noise reduction in through-hole designs. Compare the 1.2 A current rating against circuit requirements to ensure adequate headroom. Verify that the unshielded design fits within the available PCB space and does not interfere with adjacent components due to its specific dimensional profile.

Common Mode Chokes Part Context

This component is part of the CM7560 series of PC mount common mode chokes manufactured by API Delevan. The series offers various inductance options tailored for different filtering needs. These chokes are engineered for robust performance in industrial and commercial electronic equipment requiring reliable EMI suppression.

Common Mode Chokes Replacement Considerations

Check for direct substitutes from the same CM7560 series with compatible inductance and current ratings. Verify pin compatibility and physical dimensions if replacing with parts from other manufacturers. Ensure equivalent thermal and electrical performance characteristics are maintained.
