CM7560-107

Common Mode Chokes Overview

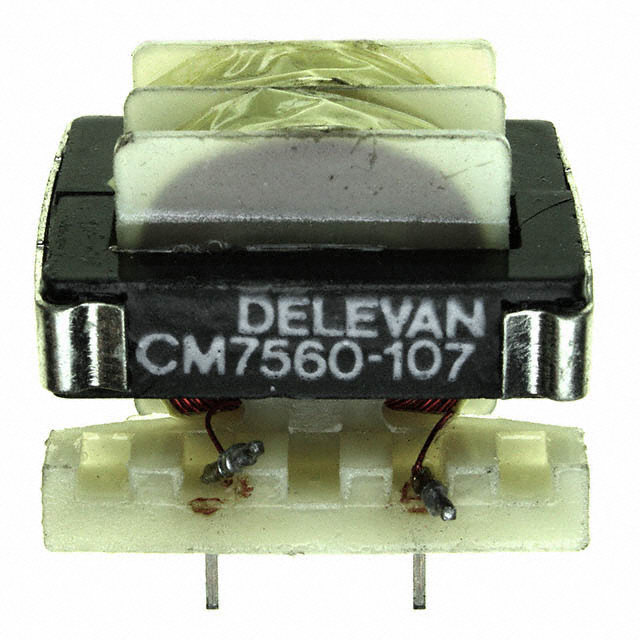

The Delevan CM7560-107 is a PC mount common mode choke designed for through-hole installation. It features a ferrite core and provides an inductance of 100 mH at a test frequency of 1 kHz with a tolerance of ±25%. The component supports a maximum DC current of 270 mA and has a maximum DC resistance of 6.4 Ohms. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height, with a lead spacing of 10.2 mm.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for two-line circuits using a ferrite core design.
• Engineered for reliable operation across a wide industrial temperature range from -55°C to +125°C.
• Features radial through-hole termination for secure PCB mounting.

Common Mode Chokes Applications

• Data line filtering in electronic equipment
• Common mode noise suppression in power supplies
• Signal integrity protection in communication interfaces

Common Mode Chokes Procurement Notes

Verify the specific part number suffix and manufacturer designation (API Delevan) against official datasheets before procurement. Confirm that the required inductance value of 100 mH and current rating of 270 mA align with the circuit design specifications. Ensure compatibility with through-hole assembly processes and verify compliance with relevant RoHS directives if required by the manufacturing environment.

Common Mode Chokes Selection Notes

Select this component when a high-inductance common mode choke is required for low-current applications. The 100 mH value offers significant attenuation for common mode signals. Consider the physical footprint and lead spacing constraints on the PCB layout. The unshielded design may require careful placement relative to sensitive components to minimize magnetic interference.

Common Mode Chokes Part Context

The CM7560 series consists of PC mount common mode chokes manufactured by API Delevan. These components are part of a broader family of inductors and chokes designed for various filtering applications. The series utilizes ferrite cores to achieve high inductance values suitable for noise suppression in data lines and power circuits.

Common Mode Chokes Replacement Considerations

Cross-reference with other Delevan CM7560 variants such as CM7560R-474 or CM7560R-475 for different inductance requirements. Verify that substitute parts match the 10.2 mm lead spacing and 27.2 x 21.8 x 21.1 mm physical dimensions to ensure mechanical compatibility.
