CM7560-124

Common Mode Chokes Overview

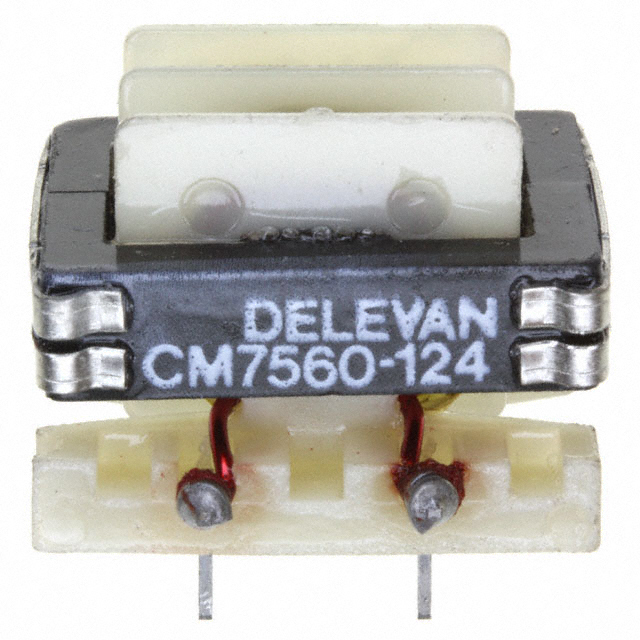

The Delevan CM7560-124 is a single-channel common mode choke designed for PCB mounting. It features an inductance of 120 µH with a tolerance of ±25%. The component supports a maximum DC current of 5.5 A and exhibits a maximum DC resistance of 0.015 Ω. It operates within a temperature range of -55 °C to +125 °C. Physical dimensions are 21.8 mm in length, 27.2 mm in width, and 21.1 mm in height, utilizing radial termination.

Common Mode Chokes Feature Summary

• Radial leaded construction for through-hole PCB integration
• Ferrite core design for effective common mode noise suppression
• High current handling capability suitable for power line filtering

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise suppression
• EMI reduction in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix and manufacturing date code against the latest API Delevan documentation to ensure compliance with current RoHS directives and material specifications. Confirm that the supplier provides valid traceability records and original manufacturer certification for quality assurance purposes prior to finalizing any acquisition.

Common Mode Chokes Selection Notes

Select this component when a high-current common mode choke with low impedance is required for radial mounting applications. Ensure the circuit environment remains within the specified -55 °C to +125 °C operating range. Verify that the 120 µH inductance value aligns with the target frequency requirements for noise attenuation in the specific design context.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of PC mount common mode chokes manufactured by API Delevan. The series utilizes ferrite cores and offers various inductance values tailored for different filtering needs. These components are engineered for robust performance in industrial and commercial electronic equipment requiring reliable EMI suppression.

Common Mode Chokes Replacement Considerations

Cross-reference with other CM7560 series variants such as CM7560-475 or CM7560R-475 if different inductance or current ratings are needed. Ensure physical footprint compatibility and verify electrical parameter equivalence before substitution.
