CM7560-125

Common Mode Chokes Overview

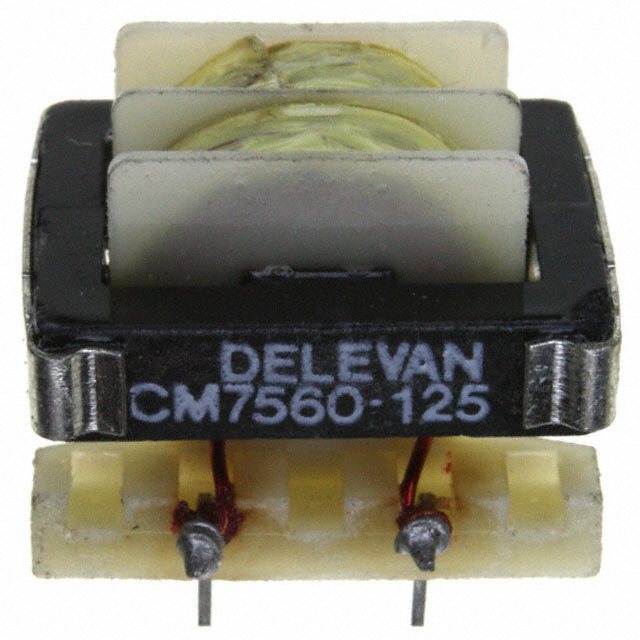

The Delevan CM7560-125 is a single-channel common mode filter choke designed for printed circuit board mounting. It features a ferrite core and radial termination style. The component provides an inductance of 1.2 mH with a tolerance of 25%. It supports a maximum DC current of 2.2 A and has a maximum DC resistance of 95 milliohms. The unit operates within a temperature range of -55°C to +125°C. Physical dimensions are 21.8 mm in length, 27.2 mm in width, and 21.1 mm in height, with a lead spacing of 10.2 mm.

Common Mode Chokes Feature Summary

• Radial through-hole construction for direct PCB integration
• Ferrite core design for effective common mode noise suppression
• Unshielded configuration suitable for standard electromagnetic interference filtering

Common Mode Chokes Applications

• Power supply input filtering
• Signal line noise reduction
• Electromagnetic interference suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical characteristics and physical specifications. Ensure compatibility with existing PCB footprint requirements, particularly regarding the 10.2 mm lead spacing. Confirm operational temperature limits align with the target application environment before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a 1.2 mH inductance value is required for common mode noise attenuation. Consider the 2.2 A current rating to ensure adequate performance under expected load conditions. Evaluate the unshielded nature of the device to determine if additional isolation measures are necessary for sensitive nearby components or signal paths.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of common mode chokes manufactured by Delevan. The series utilizes ferrite cores and offers various inductance values tailored for different filtering needs. These devices are engineered for robust performance in demanding electronic environments, providing reliable noise suppression capabilities across a wide temperature range.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers for the CM7560-125 were not identified in available documentation. Verify pinout compatibility and electrical parameters when considering alternative components from other manufacturers.
