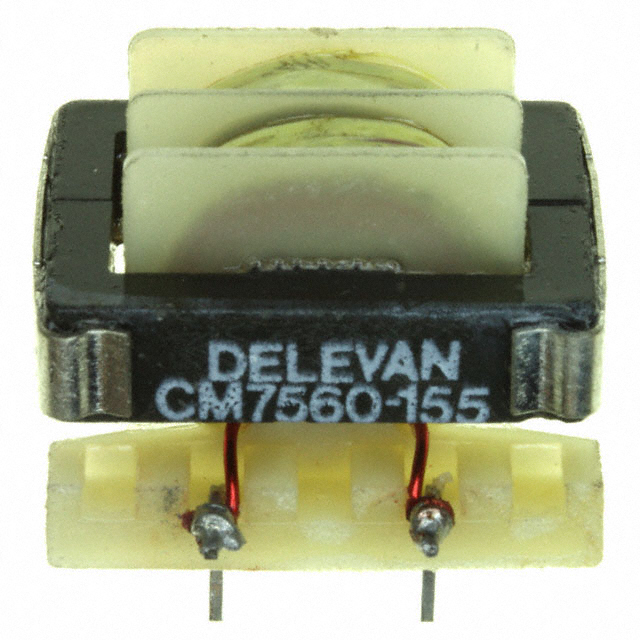

CM7560-155

$18.28

Description：CMC 1.5MH 1.7A 2LN TH
Series：CM7560
Mfr：Delevan
Package：Bulk

SKU:f5c8c04f70e8 Category: Common Mode Chokes Brand: Delevan

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CM7560-155 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Delevan. Its product description is CMC 1.5MH 1.7A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CM7560-155

Description：CMC 1.5MH 1.7A 2LN TH
Series：CM7560
Mfr：Delevan
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：1.7A
DC Resistance (DCR) (Max)：115mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.071" L x 0.858" W (27.20mm x 21.80mm)
Height (Max)：0.861" (21.86mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1.5 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for CM7560-155

CM7560-155

Common Mode Chokes Overview

The Delevan CM7560-155 is a through-hole common mode choke designed for PCB mounting. It features a ferrite core and radial termination style with a 10.2 mm lead spacing. The component provides an inductance of 1500 µH with a tolerance of ±25%. It supports a maximum DC current of 1.7 A and has a maximum DC resistance of 0.115 Ω. The device operates within a temperature range of -55 °C to +125 °C and measures 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

Radial through-hole construction for standard PCB integration
Ferrite core design for effective common mode noise suppression
High thermal stability across extended industrial temperature ranges

Common Mode Chokes Applications

Data line filtering in electronic circuits
Power supply input stages for EMI reduction
Signal integrity protection in communication interfaces

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as API Delevan components may be listed under API Delevan Inc. Confirm RoHS compliance status and lead-free certification details directly with the supplier or official datasheet before procurement. Ensure the ordering suffix matches the required packaging configuration.

Common Mode Chokes Selection Notes

Select this component when a 1500 µH common mode choke with a 1.7 A current rating is required. Verify that the physical footprint dimensions and 10.2 mm lead spacing align with the target PCB layout. Ensure the operating environment remains within the specified -55 °C to +125 °C temperature limits for reliable performance.

Common Mode Chokes Part Context

The CM7560 series comprises PC mount common mode chokes manufactured by Delevan. These components are categorized under inductors, chokes, and coils. The series utilizes ferrite cores and offers various inductance values tailored for different filtering requirements while maintaining consistent physical dimensions and mounting styles.
