CM7560-156

Common Mode Chokes Overview

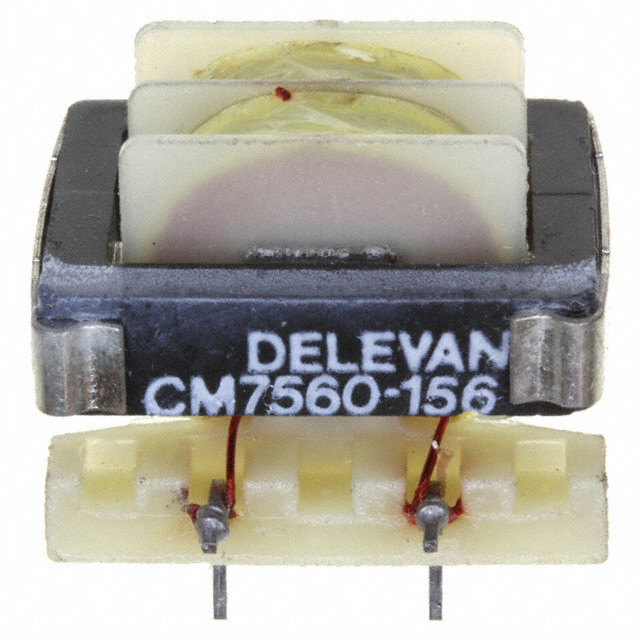

The Delevan CM7560-156 is a radial lead common mode choke designed for PCB mounting. It features a ferrite core and provides an inductance of 15,000 µH (15 mH) with a tolerance of ±25% at a test frequency of 1 kHz. The component has a maximum DC resistance of 1 Ohm and supports a maximum DC current of 700 mA. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height, with a lead spacing of 10.2 mm.

Common Mode Chokes Feature Summary

• Radial through-hole construction for printed circuit board integration
• Ferrite core design for effective common mode noise suppression
• Unshielded configuration suitable for standard electromagnetic interference filtering

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Common mode noise reduction in signal transmission paths
• Electromagnetic interference suppression in power supply lines

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as API Delevan is also listed as the producer. Confirm RoHS compliance status, as sources indicate non-compliance for this specific part number variant. Ensure the ordering suffix matches the required specifications, such as B25, if applicable to the procurement requirement.

Common Mode Chokes Selection Notes

Select this component when high inductance values are required for low-frequency noise attenuation. The 700 mA current rating must be sufficient for the target application's operating conditions. Verify that the unshielded nature does not interfere with nearby sensitive components or regulatory emissions requirements.

Common Mode Chokes Part Context

This part belongs to the CM7560 series of PC mount common mode chokes from Delevan. The series includes variants with different inductance values, such as the CM7560-475, which offers lower inductance but higher current handling capabilities while maintaining similar physical dimensions and mounting characteristics.

Common Mode Chokes Replacement Considerations

The CM7560R-475 is a related variant within the same family, though it differs significantly in inductance and current ratings. Direct substitution requires verifying that the electrical parameters of the alternative component meet the circuit's specific filtering and current requirements.
