CM7560-157

Common Mode Chokes Overview

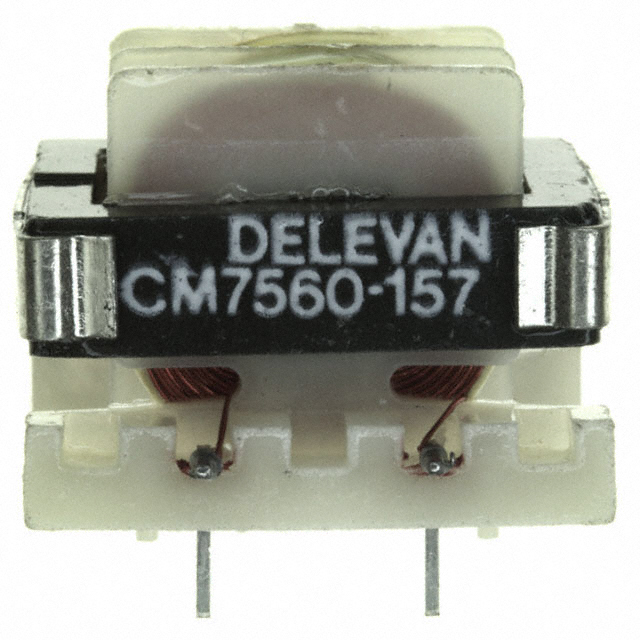

The Delevan CM7560-157 is a radial through-hole common mode choke designed for PCB mounting. It features a ferrite core and provides an inductance of 150 mH with a tolerance of ±25%. The component supports a maximum DC current of 220 mA and has a maximum DC resistance of 9 ohms. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height, with a lead spacing of 10.2 mm.

Common Mode Chokes Feature Summary

• Radial through-hole construction for standard PCB integration
• Ferrite core design for effective common mode noise suppression
• High inductance value suitable for differential data line filtering

Common Mode Chokes Applications

• Differential signal line filtering
• Common mode noise suppression in electronic circuits
• Data line protection applications

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official Delevan documentation to ensure accuracy. Confirm that the required inductance and current ratings align with your circuit design specifications before procurement. Check for RoHS compliance status as indicated in official datasheets, noting that some listings may indicate non-compliance. Ensure the package type matches your assembly requirements.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for common mode noise reduction on differential lines. The 220 mA current rating limits its use in high-power applications. Consider the physical size and lead spacing for board layout constraints. Verify thermal performance at the maximum operating temperature of +125°C if used in enclosed environments.

Common Mode Chokes Part Context

This component belongs to the Delevan CM7560 series of common mode chokes. The series offers various inductance values tailored for different filtering needs. These components are generally used in electronics requiring signal integrity maintenance on data lines. The CM7560-157 represents a specific high-inductance variant within this product family.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Delevan documentation or authorized distributors for verified cross-reference information.
