CM7560-184

Common Mode Chokes Overview

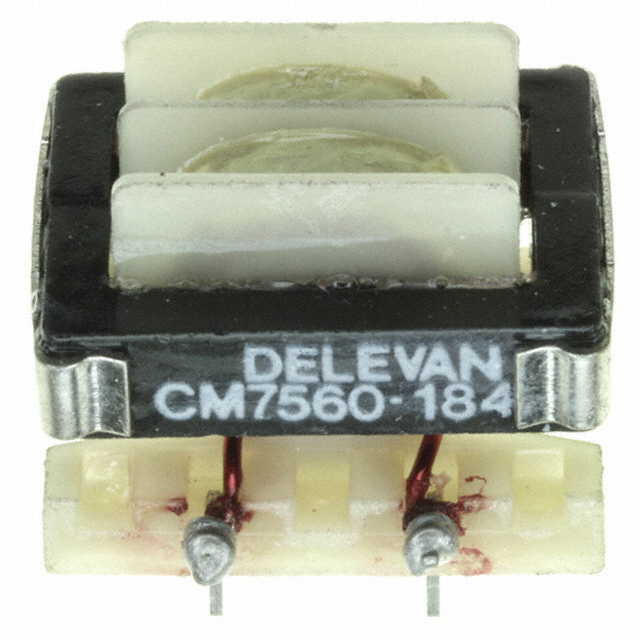

The Delevan CM7560-184 is a single-channel common mode choke designed for PCB mounting. It features a ferrite core and radial termination with a 10.2 mm lead spacing. The component provides an inductance of 180 µH at a test frequency of 1 kHz, with a tolerance of ±25%. It supports a maximum DC current of 4.5 A and exhibits a maximum DC resistance of 19 mΩ. The device operates within a temperature range of -55°C to +125°C and has physical dimensions of 21.8 mm in length, 27.2 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Radial through-hole construction for direct PCB integration
• Ferrite core design for effective common mode noise suppression
• High current handling capability suitable for power line filtering

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise suppression
• EMI reduction in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm surface finish and packaging details. Confirm RoHS compliance status as sources indicate non-compliance for this specific part number variant. Ensure the required lead spacing matches the target PCB footprint layout before procurement.

Common Mode Chokes Selection Notes

Select this component when high current capacity is required alongside moderate inductance values. The unshielded design requires consideration of magnetic field interaction with nearby components. Verify that the operating environment stays within the specified thermal limits for reliable performance.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of PC mount common mode chokes manufactured by API Delevan. The series utilizes ferrite cores to provide noise filtration for both data and power lines. These chokes are engineered for robust performance in industrial and commercial applications requiring durable electromagnetic interference suppression.

Common Mode Chokes Replacement Considerations

Cross-reference with other CM7560 series variants such as CM7560-475 or CM7560R-565 if different inductance or current ratings are needed. Ensure any substitute maintains the same 10.2 mm lead spacing and physical envelope to fit existing board layouts.
