CM7560-224

Common Mode Chokes Overview

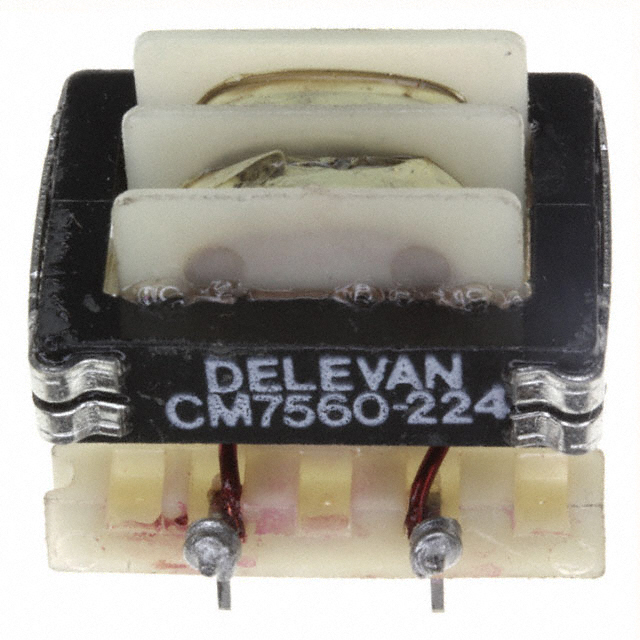

The Delevan CM7560-224 is a through-hole common mode choke designed for PCB mounting. It features a ferrite core and radial termination with a lead spacing of 10.2 mm. The component provides an inductance of 220 µH at a test frequency of 1 kHz, with a tolerance of ±25%. It supports a maximum DC current of 4.5 A and has a maximum DC resistance of 20 mΩ. Physical dimensions are 21.8 mm in length, 27.2 mm in width, and 21.1 mm in height. The operating temperature range spans from -55°C to +125°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression via a single-channel ferrite core design.
• Supports high current handling capabilities suitable for power line filtering applications.
• Features unshielded construction with radial leads for standard PCB insertion.

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise suppression
• EMI reduction in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official Delevan documentation to ensure accuracy. Confirm that the required inductance value, current rating, and physical footprint align with the target circuit design requirements before procurement.

Common Mode Chokes Selection Notes

Select this component when a through-hole common mode choke with a 220 µH inductance and 4.5 A current rating is required. Ensure the PCB layout accommodates the specified radial lead spacing and physical dimensions for proper mounting.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of common mode chokes manufactured by API Delevan. The series includes various inductance values tailored for different filtering needs, all sharing similar mounting styles and core materials.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official manufacturer cross-reference lists for verified alternatives.
