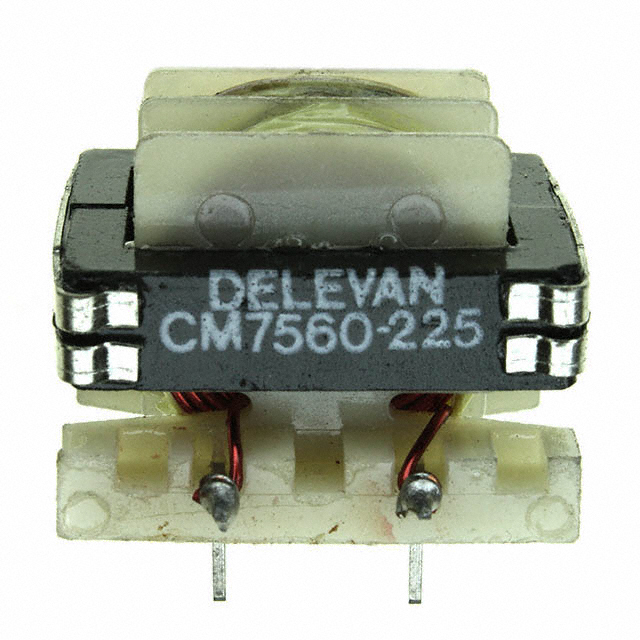

CM7560-225 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Delevan. Its product description is CMC 2.2MH 1.4A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CM7560-225
- Description：CMC 2.2MH 1.4A 2LN TH
- Series：CM7560
- Mfr：Delevan
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：1.4A
- DC Resistance (DCR) (Max)：170mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.071" L x 0.858" W (27.20mm x 21.80mm)
- Height (Max)：0.861" (21.86mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：2.2 mH @ 1 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for CM7560-225
Common Mode Chokes Overview
The CM7560-225 is a PC mount common mode choke manufactured by API Delevan. It features a ferrite core and radial termination for through-hole PCB integration. Key electrical parameters include an inductance of 2.2 mH at 1 kHz, a maximum DC resistance of 170 mOhms, and a current rating of 1.4 A. The component operates within a temperature range of -55°C to +125°C.
Common Mode Chokes Feature Summary
- Radial leaded construction designed for printed circuit board mounting
- Ferrite core material provides effective common mode noise suppression
- Robust thermal stability suitable for demanding industrial environments
Common Mode Chokes Applications
- Data line filtering in electronic equipment
- Common mode noise suppression in signal circuits
- EMI reduction in power supply input stages
Common Mode Chokes Procurement Notes
Verify the manufacturer designation as API Delevan or Delevan when sourcing. Confirm the specific inductance value of 2.2 mH and the 170 mOhm DC resistance against the official datasheet. Ensure the package type matches the required PCB footprint and lead spacing specifications for your design.
Common Mode Chokes Selection Notes
Select this component based on its 1.4 A current handling capability and 2.2 mH inductance requirement. Consider the physical dimensions of 27.2 mm length and 21.8 mm width for board layout constraints. Verify that the operating temperature range meets the environmental conditions of the target application.
Common Mode Chokes Part Context
This part belongs to the CM7560 series of PC mount common mode chokes from API Delevan. The series offers various inductance values tailored for different filtering needs. These components are standardized for through-hole assembly and are widely used in industrial and commercial electronics for EMI mitigation.
Common Mode Chokes Replacement Considerations
Cross-reference with other CM7560 series variants such as CM7560-184 or CM7560-275 if different inductance values are required. Ensure any substitute maintains the same radial package style and lead spacing to fit existing PCB layouts without modification.
