CM7560-226

Common Mode Chokes Overview

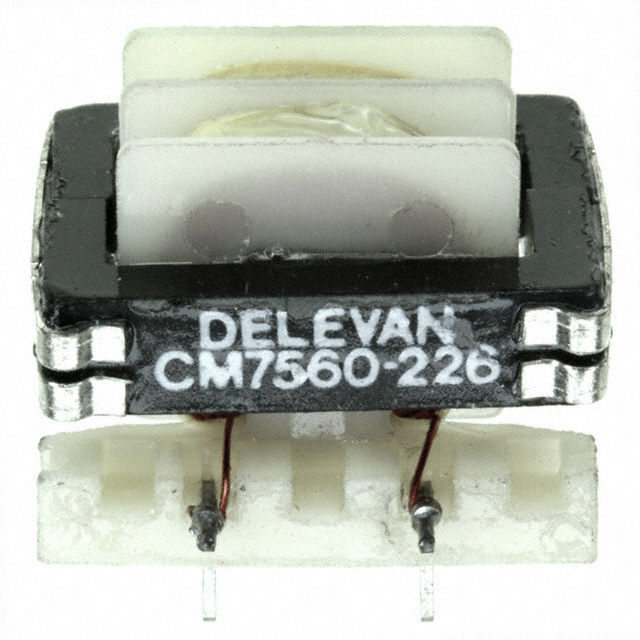

The Delevan CM7560-226 is a through-hole common mode choke filter designed for PCB mounting. It features a nominal inductance of 22,000 µH (22 mH) with a tolerance of ±25%. The component supports a maximum DC current of 550 mA and exhibits a maximum DC resistance of 1.5 Ω. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height. It operates within a temperature range of -55 °C to +125 °C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for data lines
• Utilizes ferrite core construction for high inductance
• Designed for radial lead through-hole PCB integration

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Common mode interference suppression
• Signal integrity protection in communication interfaces

Common Mode Chokes Procurement Notes

Verify the specific suffix designation when sourcing replacements, as variants such as CM7560R-226 may differ in packaging or minor specifications despite sharing similar electrical ratings. Confirm RoHS compliance status and lead finish requirements against current project standards before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when high inductance values are required for effective low-frequency noise attenuation. Ensure the PCB layout accommodates the specified physical footprint and that the operating current remains below the 550 mA saturation limit to maintain performance characteristics.

Common Mode Chokes Part Context

This part belongs to the CM7560 series of common mode chokes manufactured by API Delevan. The series offers various inductance options tailored for different filtering requirements while maintaining consistent mechanical dimensions for standardized board layouts across multiple product designs.

Common Mode Chokes Replacement Considerations

CM7560R-226 serves as a potential substitute variant within the same manufacturer lineup.
