CM7560-274

Common Mode Chokes Overview

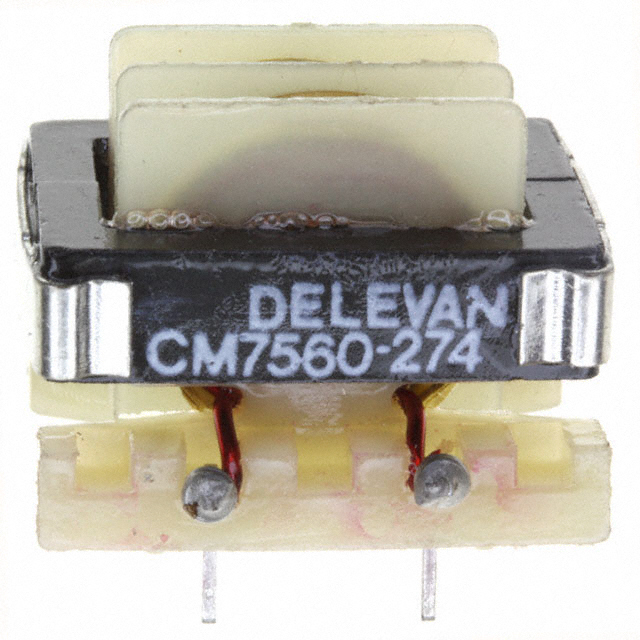

The Delevan CM7560-274 is a through-hole common mode choke designed for power line filtering. It features an inductance of 270 µH at 1 kHz with a tolerance of ±25%. The component supports a maximum DC current of 4.5 A and exhibits a maximum DC resistance of 25 mΩ. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height, with a lead spacing of 10.2 mm.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for dual-line power applications
• Utilizes ferrite core construction for effective high-frequency attenuation
• Supports high current handling capabilities suitable for power supply inputs

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Noise reduction in industrial control equipment

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as API Delevan components may be sourced under various corporate entities. Confirm that the required lead configuration matches the radial through-hole specification. Ensure the selected variant meets the necessary thermal and current ratings for the target circuit environment before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when high current capacity is required alongside common mode noise filtration. The 4.5 A rating distinguishes it from lower-current variants within the series. Verify that the physical footprint and lead spacing fit the PCB layout constraints. Consider the unshielded nature of the design regarding proximity to sensitive signal traces.

Common Mode Chokes Part Context

This part belongs to the CM7560 series of common mode chokes manufactured by Delevan. The series offers various inductance values tailored for different power line filtering requirements. The CM7560-274 specifically addresses applications needing robust current handling with moderate inductance for EMI mitigation.

Common Mode Chokes Replacement Considerations

Cross-reference with other Delevan CM7560 series parts for alternative inductance values. Verify compatibility with equivalent products from other manufacturers by matching inductance, current rating, and physical dimensions.
