CM7560-335

Common Mode Chokes Overview

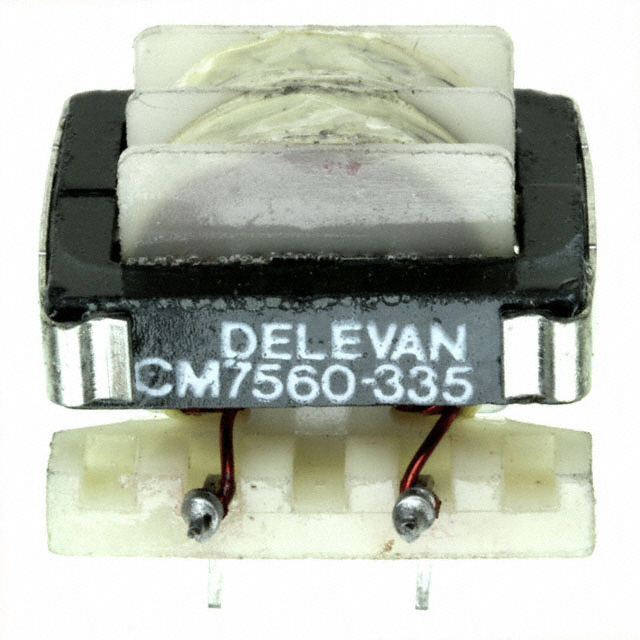

The CM7560-335 is an unshielded common mode choke manufactured by API Delevan. It features a nominal inductance of 3300 µH with a tolerance of ±25%. The component has a maximum DC resistance of 1.05 Ω and a rated current of 1.1 A. Designed for through-hole mounting, it operates within a temperature range of -55°C to 125°C. Physical dimensions are approximately 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for data lines
• Utilizes through-hole mounting technology for board integration
• Constructed as an unshielded passive electromagnetic interference filter

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Electromagnetic interference suppression in signal paths
• Common mode choke applications requiring through-hole assembly

Common Mode Chokes Procurement Notes

Verify the manufacturer designation as API Delevan when sourcing this component. Confirm that the specific part number corresponds to the 3300 µH inductance variant rather than other series members like the CM7560R or CM6560. Ensure compliance requirements such as RoHS status match project specifications before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component for applications requiring 3300 µH common mode inductance with a 1.1 A current rating. Consider the through-hole package type if surface mount alternatives are unsuitable. Verify that the unshielded design meets the spatial and electromagnetic compatibility constraints of the target enclosure.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of common mode chokes from API Delevan. The series includes various inductance values and mounting styles, such as the SMT CM6560R variants. The CM7560-335 specifically denotes the 3300 µH version within the standard through-hole lineup.

Common Mode Chokes Replacement Considerations

Cross-reference with other API Delevan CM7560 series parts for different inductance needs. Verify electrical parameters against competitors offering similar 3300 µH through-hole common mode chokes.
