CM7560-336

Common Mode Chokes Overview

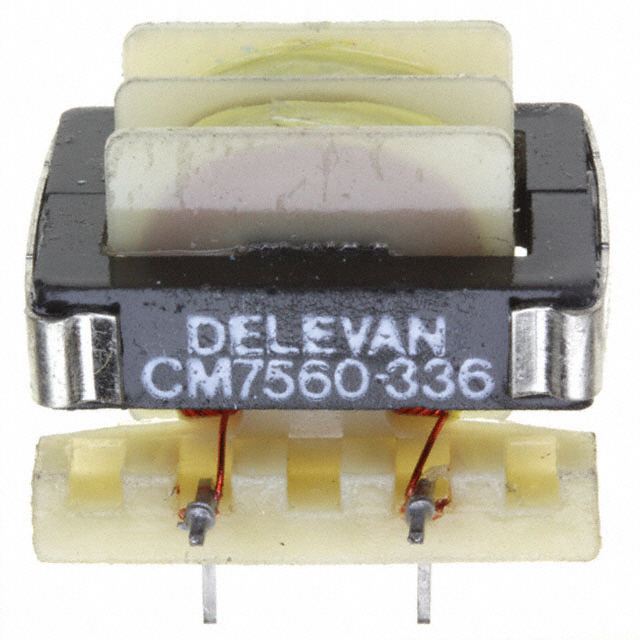

The Delevan CM7560-336 is a through-hole mount common mode choke belonging to the CM7560 series. It features a ferrite core and radial termination for PCB installation. The component provides an inductance of 33 mH with a tolerance of ±25%, measured at a test frequency of 1 kHz. It supports a maximum DC current of 440 mA and exhibits a maximum DC resistance of 2.2 ohms. The device operates within a temperature range of -55°C to +125°C and has physical dimensions of 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Radial leaded construction designed for standard printed circuit board mounting
• Ferrite core material utilized for effective common mode noise suppression
• Unshielded design configuration for general electromagnetic interference filtering

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Common mode noise reduction in signal transmission paths
• Electromagnetic interference suppression in power supply inputs

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as API Delevan and Delevan are referenced in available records. Confirm RoHS compliance status, as some sources indicate non-compliance while others suggest lead-free variants exist. Ensure the supplier provides official datasheets matching the 33 mH specification and 2.2 ohm DCR values to avoid substitution errors with similar series components.

Common Mode Chokes Selection Notes

Select this component when a high-inductance common mode choke is required for low-current applications up to 440 mA. The unshielded design may require careful layout consideration regarding magnetic field interaction. Verify that the through-hole package dimensions fit the target PCB footprint and that the operating temperature range meets the environmental requirements of the final assembly.

Common Mode Chokes Part Context

This component is part of the CM7560 series of PC mount common mode chokes manufactured by API Delevan. The series offers various inductance values tailored for different filtering needs. The CM7560-336 specifically targets applications requiring higher inductance for lower frequency noise attenuation compared to other members of the same family.

Common Mode Chokes Replacement Considerations

Cross-reference with CM7560R-336 if shielded versions are preferred, though availability varies. Ensure any substitute maintains the 33 mH inductance and 440 mA current rating. Verify pin spacing compatibility for direct replacement.
