CM7560-395

Common Mode Chokes Overview

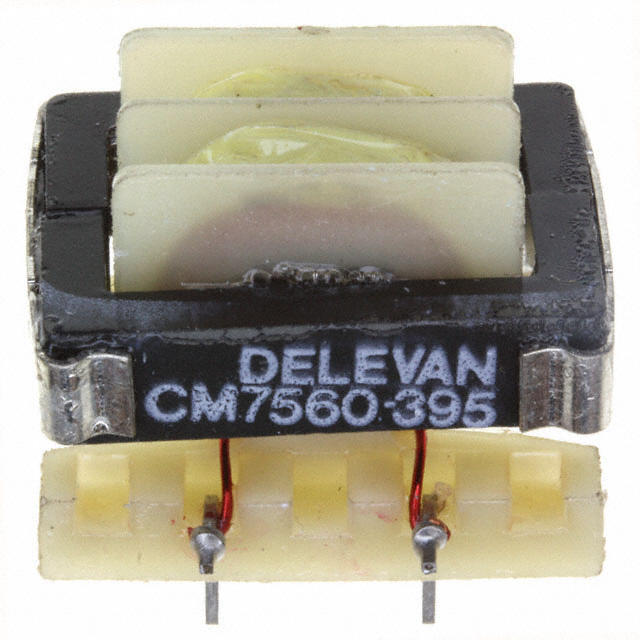

The Delevan CM7560-395 is a through-hole common mode choke designed for PCB mounting. It features a ferrite core and radial termination with a lead spacing of 10.2 mm. The component provides an inductance of 3900 µH (3.9 mH) at a test frequency of 1 kHz, with a tolerance of ±25%. It supports a maximum DC current of 1.1 A and has a maximum DC resistance of 400 mΩ. The unit operates within a temperature range of -55°C to +125°C and measures 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Radial through-hole construction for standard PCB integration
• Ferrite core design for effective common mode noise suppression
• High inductance value suitable for filtering applications

Common Mode Chokes Applications

• Power supply line filtering
• Data line noise suppression
• EMI reduction in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official Delevan documentation to ensure compatibility with design requirements. Confirm that the component meets necessary regulatory standards for the intended market. Check for any updates regarding RoHS compliance status or material declarations prior to final procurement decisions.

Common Mode Chokes Selection Notes

Select this component based on the required 3900 µH inductance and 1.1 A current rating. Ensure the PCB layout accommodates the 10.2 mm lead spacing and physical dimensions. Consider the thermal environment to guarantee operation within the specified -55°C to +125°C range without exceeding the DC resistance limits.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of common mode chokes manufactured by Delevan. The series offers various inductance values tailored for different filtering needs while maintaining consistent physical footprints and mounting styles for design flexibility across multiple product lines.

Common Mode Chokes Replacement Considerations

Consult official Delevan documentation for confirmed substitute part numbers within the same series or equivalent specifications from other manufacturers.
