CM7560-474

Common Mode Chokes Overview

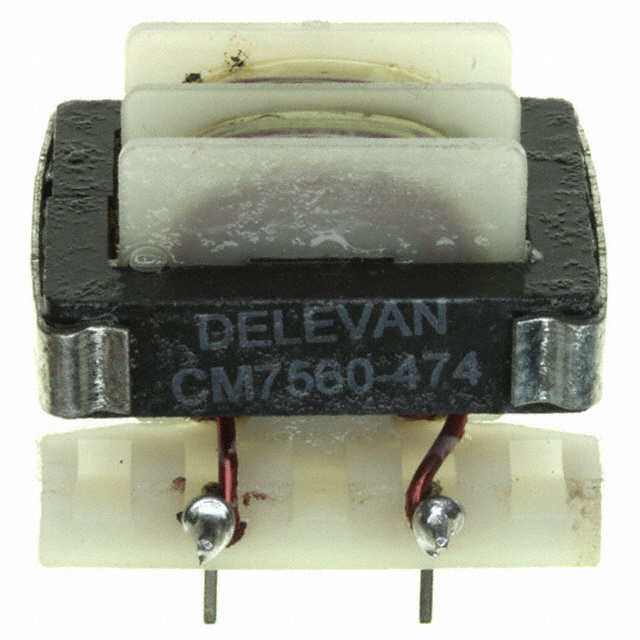

The Delevan CM7560-474 is a through-hole common mode choke designed for PCB mounting. It features a ferrite core and radial termination with a 10.2 mm lead spacing. The component provides an inductance of 470 µH at a test frequency of 1 kHz, with a tolerance of ±25%. It supports a maximum DC current of 3.5 A and has a maximum DC resistance of 30 mOhms. The device operates within a temperature range of -55°C to +125°C. Its physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Radial through-hole construction for standard PCB integration
• Ferrite core design for effective common mode noise suppression
• High current handling capability suitable for power line filtering

Common Mode Chokes Applications

• Power supply input filtering
• Data line EMI suppression
• General purpose common mode noise reduction in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official API Delevan documentation to ensure authenticity. Confirm that the component meets required RoHS compliance standards if applicable to your assembly process. Check for any specific environmental certifications or material declarations required by your regulatory framework before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a through-hole solution is required for high-current common mode filtering applications. Ensure the PCB layout accommodates the 10.2 mm lead spacing and the specified physical footprint. Verify that the operating environment stays within the -55°C to +125°C temperature range to maintain performance integrity.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of common mode chokes manufactured by API Delevan. The series offers various inductance values tailored for different filtering requirements while maintaining consistent mechanical and thermal characteristics across the product line.

Common Mode Chokes Replacement Considerations

Consult official API Delevan cross-reference lists for verified substitutes. Ensure any replacement maintains identical inductance, current rating, and physical dimensions to guarantee compatibility with existing PCB layouts.
