CM7560-476

Common Mode Chokes Overview

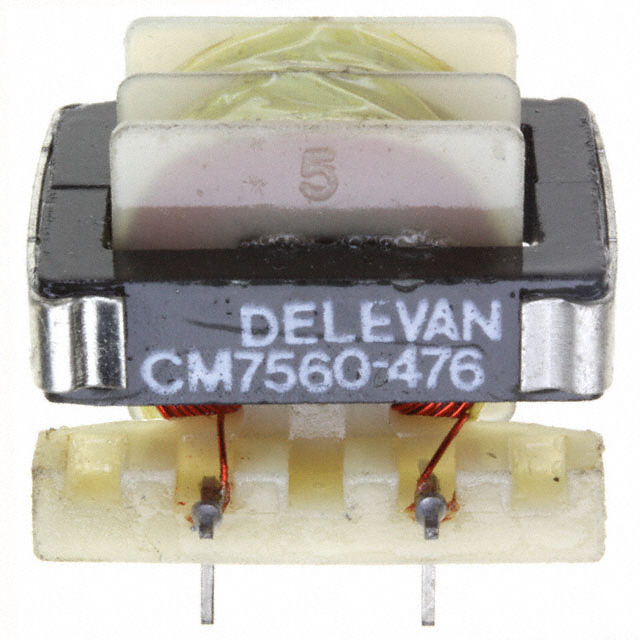

The Delevan CM7560-476 is a PC mount common mode choke designed for through-hole installation. It features a ferrite core and radial termination style with a lead spacing of 10.2 mm. The component provides an inductance of 47 µH at a test frequency of 100 kHz, with a tolerance of ±25%. It supports a maximum DC current of 440 mA and exhibits a maximum DC resistance of 3 Ω. The device operates within a temperature range of -55 °C to +125 °C and has physical dimensions of 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Radial through-hole mounting configuration for PCB integration
• Ferrite core construction for effective noise suppression
• Dual-line filtering capability for common mode interference

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Common mode noise suppression in signal paths
• EMI reduction in low-current applications

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the CM7560-476 to confirm RoHS compliance status and exact electrical tolerances. Ensure the selected variant matches the required inductance value of 47 µH and current rating of 440 mA for your design. Confirm package dimensions and lead spacing compatibility with your PCB footprint before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a compact, unshielded common mode choke is required for low-current data lines. The 440 mA rating suits applications with modest signal currents. Verify that the 3 Ω DC resistance does not introduce excessive voltage drop in your circuit. Consider the 10.2 mm lead spacing for mechanical fitment on the target board layout.

Common Mode Chokes Part Context

This part belongs to the Delevan CM7560 series of PC mount common mode chokes. The series offers various inductance values tailored for different filtering requirements. The CM7560-476 specifically targets applications needing moderate inductance with a small form factor. It is manufactured by API Delevan, a provider of passive components.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching inductance, current rating, and physical dimensions manually.
