CM7560-565

Common Mode Chokes Overview

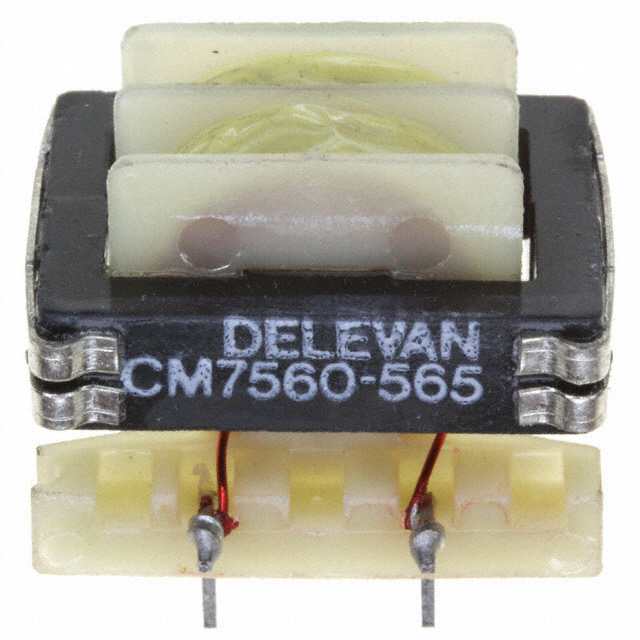

The Delevan CM7560-565 is a through-hole PC mount common mode choke belonging to the CM7560R series. It utilizes a ferrite core and features radial termination with a 10.2 mm lead spacing. The component provides an inductance of 5600 uH (5.6 mH) at a test frequency of 1 kHz, with a tolerance of +/- 25%. It supports a maximum DC current of 880 mA and has a maximum DC resistance of 0.5 Ohms. The device operates within a temperature range of -55°C to +125°C and measures 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Radial through-hole mounting configuration for PCB integration
• Ferrite core construction for effective noise suppression
• Unshielded design suitable for standard electromagnetic interference filtering

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Common mode noise suppression in signal paths
• Electromagnetic interference reduction in power supplies

Common Mode Chokes Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your circuit requirements. Confirm that the radial lead spacing and physical dimensions match your PCB footprint. Check for RoHS compliance status if required by your manufacturing standards. Ensure the operating temperature range meets your environmental conditions. Validate the inductance and current ratings against your system specifications before procurement.

Common Mode Chokes Selection Notes

Select this component when a high-inductance common mode choke is required for low-frequency noise suppression. The 880 mA current rating makes it suitable for moderate current applications. The through-hole package offers robust mechanical stability compared to surface-mount alternatives. Consider the unshielded nature of the device regarding potential magnetic coupling with nearby components. Verify that the 10.2 mm lead spacing fits your existing board layout constraints.

Common Mode Chokes Part Context

This component is part of the Delevan CM7560R series of common mode chokes. The series includes various inductance values tailored for different filtering needs. The CM7560-565 specifically targets applications requiring higher inductance for enhanced noise attenuation. It shares physical dimensions with other members of the series, facilitating consistent board design across different filtering requirements.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
