CM7560-566

Common Mode Chokes Overview

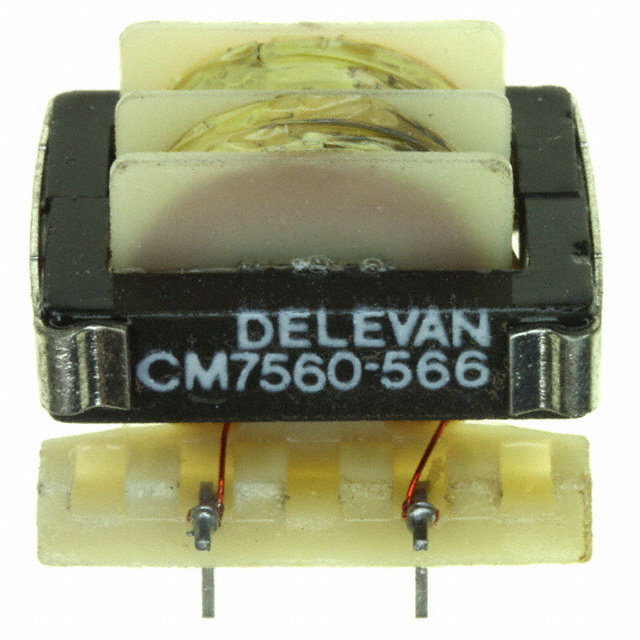

The Delevan CM7560-566 is a through-hole PC mount common mode choke designed for data line filtering. It features a ferrite core and provides an inductance of 56 mH at a test frequency of 1 kHz with a tolerance of ±25%. The component supports a maximum DC current of 350 mA and has a maximum DC resistance of 4 Ohms. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height, with a lead spacing of 10.2 mm.

Common Mode Chokes Feature Summary

• Radial leaded construction for standard PCB mounting
• Unshielded ferrite core design for common mode noise suppression
• Suitable for high-temperature environments up to 125°C

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Common mode noise suppression in signal lines
• EMI reduction in communication interfaces

Common Mode Chokes Procurement Notes

Verify the specific suffix or variant code against the manufacturer's latest documentation to ensure compatibility with required current ratings and impedance characteristics. Confirm RoHS compliance status as specifications may vary by production batch. Cross-reference physical dimensions and lead spacing with the target PCB footprint to prevent assembly errors during integration.

Common Mode Chokes Selection Notes

Select this component when a 56 mH inductance value is required for common mode rejection in low-current applications. Ensure the circuit's operating current does not exceed the 350 mA rating to maintain performance. Verify that the unshielded design meets the electromagnetic interference requirements of the final enclosure without causing crosstalk to adjacent components.

Common Mode Chokes Part Context

This part belongs to the CM7560 series of PC mount common mode chokes from Delevan. The series offers various inductance values tailored for different filtering needs while maintaining consistent physical footprints. These components are engineered for reliability in industrial and commercial electronics requiring robust noise filtration on differential signal lines.

Common Mode Chokes Replacement Considerations

Check equivalent parts from other manufacturers offering 56 mH common mode chokes with similar 350 mA ratings and radial pin configurations. Ensure substitute components match the 27.2 x 21.8 x 21.1 mm dimensions and 10.2 mm lead spacing for direct board replacement.
