CM7560-686

Common Mode Chokes Overview

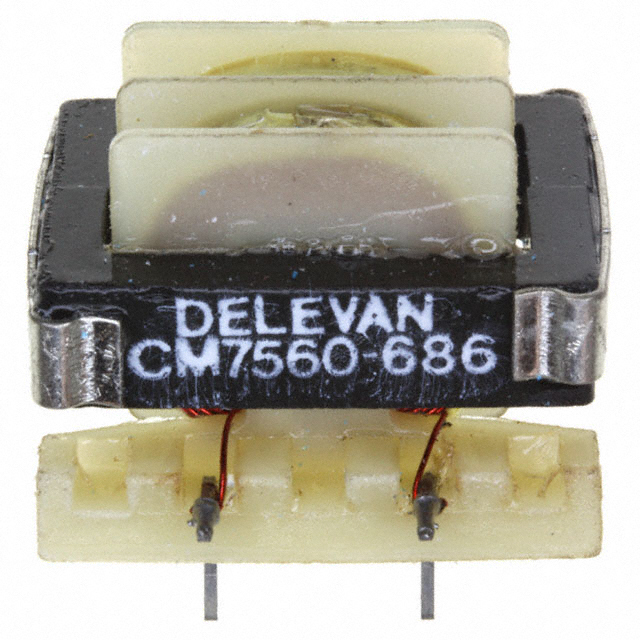

The Delevan CM7560-686 is a through-hole common mode choke filter designed for PCB mounting. It features an inductance of 68,000 µH with a tolerance of ±25%. The component supports a maximum DC current of 270 mA and exhibits a maximum DC resistance of 5 Ω. It operates within a temperature range of -55 °C to +125 °C. The unit utilizes ferrite core material and tin-plated radial leads with a 10.2 mm spacing. Physical dimensions are approximately 21.3 mm in length, 18.8 mm in width, and 17.0 mm in height.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for data lines using ferrite core technology.
• Designed for reliable through-hole PCB mounting with radial termination.
• Operates effectively across a wide industrial temperature range.

Common Mode Chokes Applications

• Data line filtering in electronic equipment
• Common mode noise suppression in signal circuits
• EMI reduction in communication interfaces

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as API Delevan assets may be managed by other entities. Confirm RoHS compliance status and lead times directly with authorized distributors or suppliers. Ensure the ordering quantity matches available packaging formats, such as bulk quantities, prior to finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when high inductance values are required for low-frequency common mode noise attenuation. Evaluate the 270 mA current rating against the circuit's operational requirements to prevent saturation. Consider the physical footprint and lead spacing compatibility with the target PCB layout during the design phase.

Common Mode Chokes Part Context

This part belongs to the CM7560 series of PC mount common mode chokes manufactured by Delevan. The series offers various inductance options tailored for different filtering needs. These components are characterized by their robust construction and suitability for applications requiring significant common mode interference rejection.

Common Mode Chokes Replacement Considerations

Cross-reference with CM7560R-686 for potential functional equivalents within the same product family. Verify that substitute parts match the critical electrical parameters, including inductance, current rating, and physical dimensions, before implementation.
