CM7560-823

Common Mode Chokes Overview

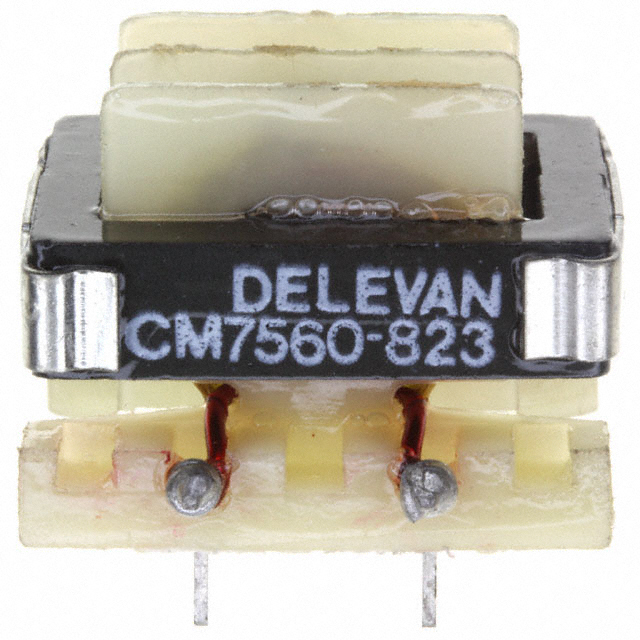

The CM7560-823 is a PC mount common mode choke manufactured by Delevan. It features an inductance of 82 µH with a tolerance of ±25%. The component supports a maximum DC current of 5.5 A and has a maximum DC resistance of 13 mΩ. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 21.8 mm in length, 27.2 mm in width, and 21.1 mm in height. The device utilizes radial termination for PCB mounting.

Common Mode Chokes Feature Summary

• Radial leaded construction designed for through-hole PCB mounting
• High current handling capability up to 5.5 A
• Low DC resistance for efficient power line filtering

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in AC/DC converters
• Signal integrity protection in data lines

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official API Delevan documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with existing PCB footprints and thermal management requirements. Confirm RoHS compliance status if required by project specifications. Cross-reference datasheet revisions to ensure design continuity.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low impedance are required for common mode noise reduction. The radial package suits automated or manual through-hole assembly processes. Evaluate the 5.5 A saturation current against peak load conditions. Consider the operating temperature range for environmental robustness.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of PC mount common mode chokes from Delevan. The series offers various inductance values tailored for different filtering needs while maintaining consistent physical form factors. These chokes are engineered for reliable performance in industrial and commercial electronic equipment requiring effective electromagnetic interference mitigation.

Common Mode Chokes Replacement Considerations

Consult official Delevan documentation for direct cross-references. Verify that substitute components match the 82 µH inductance, 5.5 A current rating, and 13 mΩ resistance specifications. Ensure physical footprint compatibility with the existing PCB layout.
