CM7560-825

Common Mode Chokes Overview

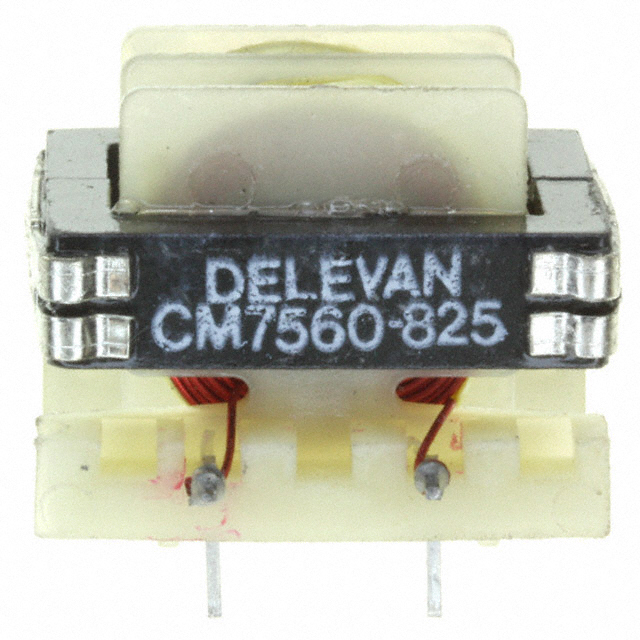

The Delevan CM7560-825 is a radial through-hole common mode choke designed for PCB mounting. It features an inductance of 8.2 mH with a tolerance of ±25%. The component supports a maximum DC current of 880 mA and exhibits a maximum DC resistance of 0.75 ohms. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height, with a lead spacing of 10.2 mm.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for single-channel applications
• Utilizes ferrite core material for effective filtering performance
• Designed for vertical PCB mounting via radial leads

Common Mode Chokes Applications

• Data line filtering
• Power supply input stages
• Signal integrity protection in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as API Delevan assets may be managed by other entities. Confirm RoHS compliance status directly with the supplier, as documentation indicates variations across the series. Ensure the required inductance value and current rating align with circuit design specifications before ordering.

Common Mode Chokes Selection Notes

Select this component when a high-inductance common mode choke is required for low-current applications up to 880 mA. The 8.2 mH value suits filtering requirements at lower frequencies. Consider the physical footprint and lead spacing constraints on the target PCB layout to ensure proper mechanical fit during assembly.

Common Mode Chokes Part Context

This part belongs to the CM7560 series of PC mount common mode chokes. The series includes variants with different inductance values, such as the CM7560-475 and CM7560R-475. These components share similar physical dimensions and mounting styles but differ in electrical characteristics like inductance and DC resistance.

Common Mode Chokes Replacement Considerations

Direct substitutes include other CM7560 series parts with compatible electrical ratings. Verify that alternative components match the 8.2 mH inductance and 880 mA current handling capability. Ensure the replacement maintains the same radial lead spacing and thermal operating range.
