CM7560-826

Common Mode Chokes Overview

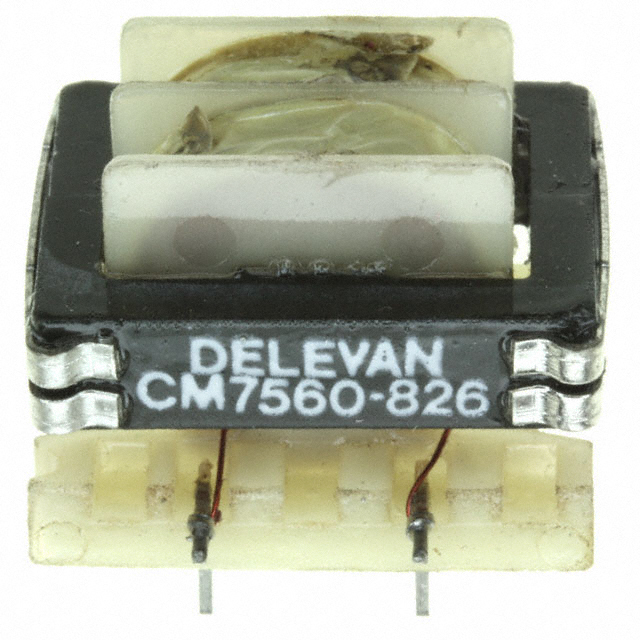

The Delevan CM7560-826 is a through-hole common mode choke designed for PCB mounting. It features a ferrite core and radial termination style with a lead spacing of 10.2 mm. The component provides an inductance of 82,000 uH (82 mH) with a tolerance of ±25%. It supports a maximum DC current of 270 mA and has a maximum DC resistance of 5.5 ohms. The device operates within a temperature range of -55°C to +125°C. Physical dimensions are 27.2 mm in length, 21.8 mm in width, and 21.1 mm in height.

Common Mode Chokes Feature Summary

• Radial through-hole construction for standard PCB integration
• Ferrite core material for effective electromagnetic interference suppression
• High inductance value suitable for low-frequency noise filtering

Common Mode Chokes Applications

• Data line filtering in electronic circuits
• Common mode noise suppression in power supplies
• EMI mitigation in communication interfaces

Common Mode Chokes Procurement Notes

Verify the manufacturer part number against official API Delevan documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical parameters, as variations may exist within the series. Check RoHS compliance status directly from the datasheet before procurement. Ensure the ordering quantity aligns with available packaging formats such as bulk or reel options specified by the supplier.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for common mode noise reduction at lower frequencies. The 270 mA current rating limits its use in high-power applications; verify circuit requirements against this limit. The unshielded design requires consideration of placement relative to sensitive components to prevent magnetic coupling issues during layout.

Common Mode Chokes Part Context

This component belongs to the CM7560 series of PC mount common mode chokes manufactured by API Delevan. The series offers various inductance values tailored for different filtering needs while maintaining consistent physical dimensions and mounting styles for design flexibility across multiple product lines.

Common Mode Chokes Replacement Considerations

Cross-reference with other CM7560 series variants if different inductance or current ratings are needed. Verify pin compatibility and mechanical footprint before substituting with generic equivalents.
