Product Detailed Parameters
- Description：IGBT MODULE 600V 75A 290W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：Trench
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 75A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：290 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：20 nF @ 10 V
Download product information
Overview

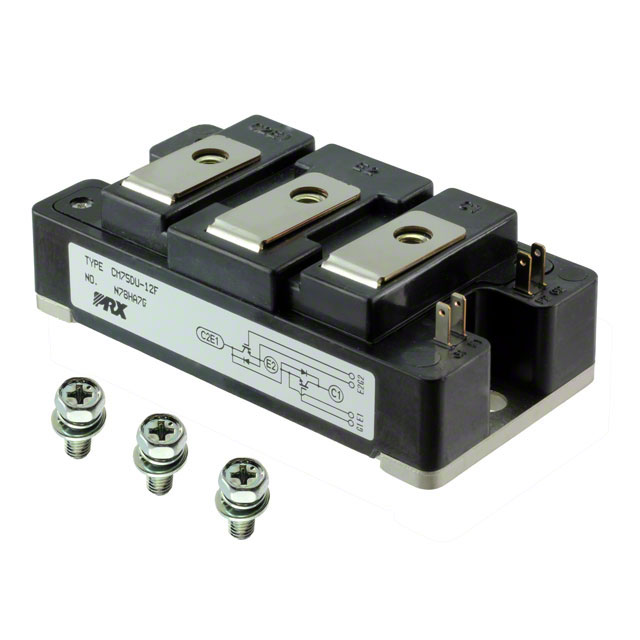

The CM75DU-12F is a standard IGBT power module manufactured by Mitsubishi Electric, belonging to the CM series. It features a dual-unit (two-chip) circuit configuration with a 600V voltage rating and a 75A current capacity. The device utilizes IGBT technology for efficient power switching. This component is part of the broader CM series lineup, which includes various configurations such as single-phase half-bridge and six-pack structures across different voltage levels.
Feature Summary
- Dual-unit configuration integrating two independent IGBT chips within a single package
- Standard IGBT technology designed for robust power switching applications
- 600V blocking voltage capability suitable for medium-voltage inverter circuits
Applications
- Industrial motor drives and variable frequency drives
- Uninterruptible power supply (UPS) systems
- General-purpose inverters and converters
Procurement Notes
Verify the manufacturer origin carefully, as the CM75DU-12F is a Mitsubishi Electric product. Ensure the specific suffix matches required thermal or electrical variants. Confirm availability status as older series components may have limited stock or obsolescence risks from distributors.
Selection Notes
Select this model for applications requiring a 600V, 75A dual-chip IGBT solution. Compare against the DU series family for similar configurations. Consider thermal management requirements and mounting compatibility with existing heatsink designs when integrating into power electronics systems.
Part Context
The CM75DU-12F belongs to Mitsubishi's CM series of standard IGBT modules. This series encompasses various circuit structures including single-unit, dual-unit, and six-pack configurations. The DU designation specifically indicates a dual-unit arrangement, distinguishing it from other series like HA or DY.
Replacement Considerations
Potential substitutes include other 600V 75A dual-unit IGBT modules from Mitsubishi such as CM75DU-24H or CM75DU-12NF. Cross-reference pinouts and thermal characteristics before substitution.
