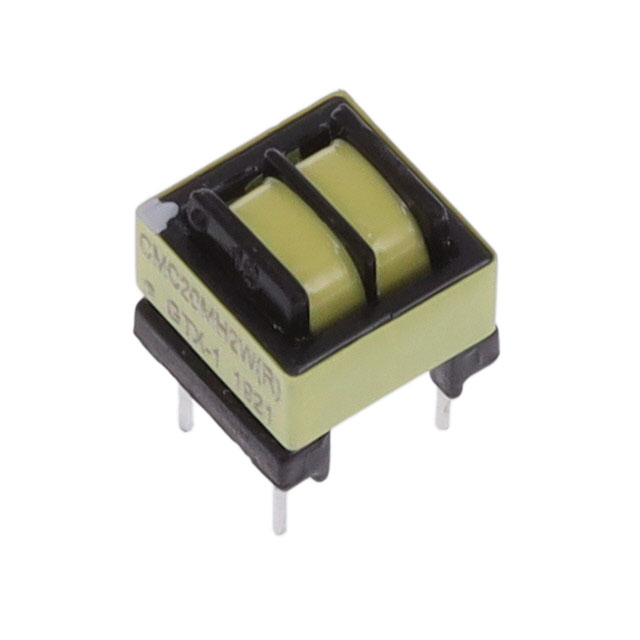

CMC20MH2W(R) is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists GlobTek, Inc.. Its product description is CMC 17.5MH 125MA 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMC20MH2W(R)
- Description：CMC 17.5MH 125MA 2LN TH
- Series：-
- Mfr：GlobTek, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：125mA
- DC Resistance (DCR) (Max)：2.9Ohm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：310V
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：UL
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.374" L x 0.394" W (9.50mm x 10.00mm)
- Height (Max)：0.374" (9.50mm)
- Package / Case：-
- Inductance @ Frequency：17.5 mH @ 1 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for CMC20MH2W(R)
Common Mode Chokes Overview
The CMC20MH2W(R) is a common mode choke manufactured by GlobTek, Inc. This component is designed for use in commercial, medical, and industrial equipment applications. It functions as an electromagnetic interference filter to suppress noise on power lines.
Common Mode Chokes Feature Summary
- Designed for commercial, medical, and industrial equipment environments
- Functions as a common mode choke for noise suppression
Common Mode Chokes Applications
- Commercial equipment
- Medical equipment
- Industrial equipment
Common Mode Chokes Procurement Notes
Verify the exact part number CMC20MH2W(R) with the supplier or manufacturer before ordering. Confirm that the component meets the specific requirements for your commercial, medical, or industrial application. Ensure compatibility with your system design and regulatory standards.
Common Mode Chokes Selection Notes
Select this component based on its suitability for common mode noise reduction in power circuits. Consider the operating environment of commercial, medical, or industrial equipment. Verify that the physical dimensions and mounting style fit your PCB layout. Ensure it meets necessary safety certifications for the intended market.
Common Mode Chokes Part Context
GlobTek, Inc. provides a range of power solutions including AC-DC power supplies and adapters. The CMC series components are part of their offerings for electromagnetic interference filtering. These chokes are used to ensure signal integrity and compliance with emissions standards in various electronic systems.
Common Mode Chokes Replacement Considerations
No publicly confirmed substitute part numbers are available for the CMC20MH2W(R). Consult GlobTek technical support for potential alternatives if this specific part is unavailable.
Common Mode Chokes FAQ
What type of equipment is the CMC20MH2W(R) intended for?
It is intended for use with commercial, medical, and/or industrial equipment.
What is the primary function of the CMC20MH2W(R)?
It serves as a common mode choke to suppress electromagnetic interference.
