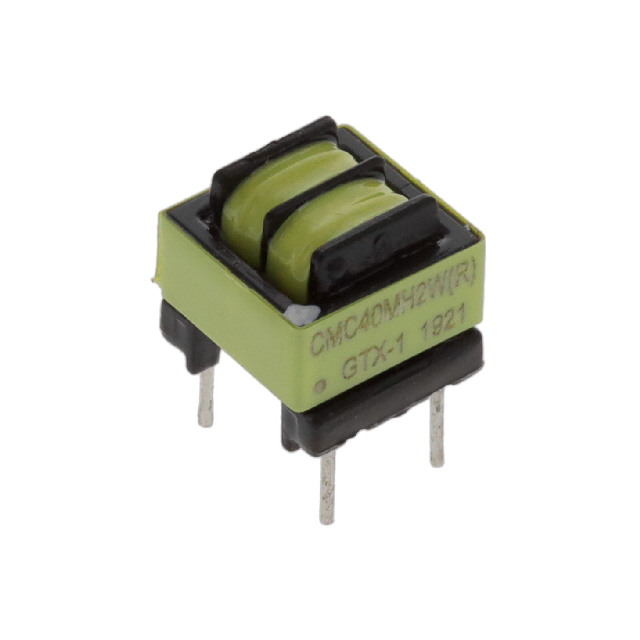

CMC40MH2W(R)

$2.42

Description：CMC 35MH 125MA 2LN THROUGH HOLE
Series：-
Mfr：GlobTek, Inc.
Package：Bulk

SKU:645f6c43dd1c Category: Common Mode Chokes Brand: GlobTek, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMC40MH2W(R) is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists GlobTek, Inc.. Its product description is CMC 35MH 125MA 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CMC40MH2W(R)

Description：CMC 35MH 125MA 2LN THROUGH HOLE
Series：-
Mfr：GlobTek, Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：125mA
DC Resistance (DCR) (Max)：4.2Ohm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：310V
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：UL
Features：-
Mounting Type：Through Hole
Size / Dimension：0.374" L x 0.394" W (9.50mm x 10.00mm)
Height (Max)：0.374" (9.50mm)
Package / Case：-
Inductance @ Frequency：35 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for CMC40MH2W(R)

CMC40MH2W(R)

Common Mode Chokes Overview

The CMC40MH2W(R) is a common mode choke manufactured by GlobTek, Inc. It features a 1 kHz frequency rating and a current capacity of 125 mA. The component utilizes a two-line configuration for noise suppression applications. It is designed for through-hole mounting to ensure secure PCB integration. The device operates with an AC voltage rating of 310V. This inductor is RoHS compliant and meets environmental standards for electronic assemblies.

Common Mode Chokes Feature Summary

Provides common mode noise filtering for differential signal lines
Supports through-hole mounting for robust mechanical attachment
Rated for 310V AC operation in power circuits

Common Mode Chokes Applications

AC line noise suppression in power supplies
EMI filtering for medical equipment power inputs
Common mode interference reduction in ICT/ITE devices

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number CMC40MH2W(R) against official GlobTek documentation to confirm technical specifications. Ensure compliance with relevant safety certifications such as UL or ETL if required for the end application. Check for RoHS3 compliance status before procurement. Confirm package type and pin configuration match the design requirements.

Common Mode Chokes Selection Notes

Select this component based on its 125 mA current handling capability and 1 kHz frequency response. Evaluate the 310V AC rating against the system's operating voltage. Consider the through-hole form factor for assembly compatibility. Compare performance metrics with alternative common mode chokes from other manufacturers if supply constraints exist.

Common Mode Chokes Part Context

GlobTek, Inc. specializes in switching power supplies, chargers, and related power solutions. The company has provided power solutions since 1984. Their product portfolio includes battery chargers, rechargeable packs, and AC-DC adapters. The CMC40MH2W(R) falls within their passive component offerings for circuit protection and signal integrity.
