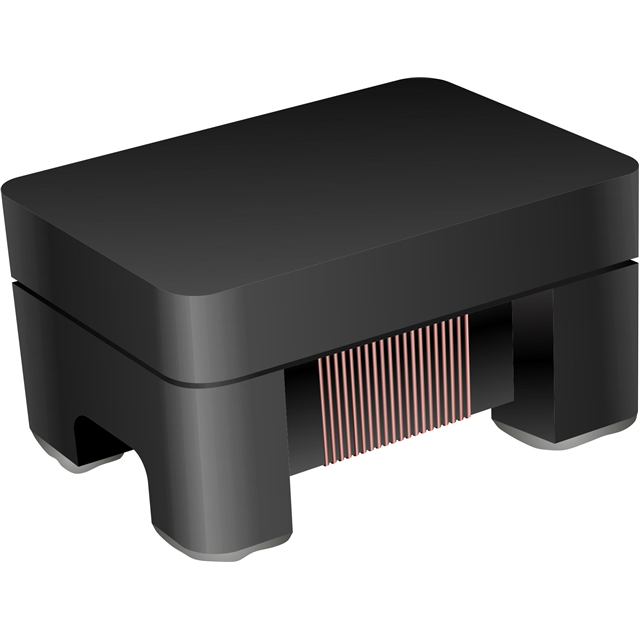

CMCC0805121MT

$0.03

Description：CMC 370MA 2LN 120 OHM SMD
Series：CMCC
Mfr：Venkel
Package：Tape & Reel (TR)

SKU:915b075eebb1 Category: Common Mode Chokes Brand: Venkel

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMCC0805121MT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Venkel. Its product description is CMC 370MA 2LN 120 OHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CMCC0805121MT

Description：CMC 370MA 2LN 120 OHM SMD
Series：CMCC
Mfr：Venkel
Package：Tape & Reel (TR)
Filter Type：-
Number of Lines：2
Current Rating (Max)：370mA
DC Resistance (DCR) (Max)：300mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max)：0.055" (1.40mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：120 Ohms @ 100 MHz
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for CMCC0805121MT

CMCC0805121MT

Common Mode Chokes Overview

The Venkel CMCC0805121MT is a two-line surface mount common mode choke designed for high-frequency noise suppression. It features an inductance of 120 Ohms at 100 MHz and a rated current of 370 mA. The component exhibits a DC resistance (DCR) of 300 milliohms. It utilizes a compact 0805 package with dimensions of 2.0 mm length, 1.25 mm width, and a maximum height of 0.60 mm. The device operates within a temperature range of -55°C to +125°C and complies with RoHS 3 standards.

Common Mode Chokes Feature Summary

Provides effective common mode noise attenuation in differential signal lines
Compact 0805 footprint enables dense circuit board layout
Low DC resistance minimizes power loss in signal paths
High-temperature stability ensures reliability in demanding environments

Common Mode Chokes Applications

High-speed data interface protection
USB and HDMI line filtering
Industrial communication bus noise suppression
Consumer electronics signal integrity enhancement

Common Mode Chokes Procurement Notes

Verify the complete part number including suffixes against official Venkel documentation to ensure correct impedance and current ratings. Confirm RoHS 3 compliance status for specific manufacturing batches. Check datasheet specifications for operating temperature limits and recommended soldering profiles prior to integration into production assemblies.

Common Mode Chokes Selection Notes

Select this component when low DCR is critical for maintaining signal amplitude in high-speed applications. Evaluate the 120 Ohm impedance at 100 MHz against target noise frequencies. Ensure the 370 mA current rating exceeds peak operational currents to prevent saturation. Consider the 0805 size constraints relative to available PCB real estate.

Common Mode Chokes Part Context

This component belongs to Venkel's CMCC series of multilayer ceramic common mode chokes. These devices are engineered for surface mount technology (SMT) assembly processes. The series offers various impedance values and current ratings across standard package sizes to support diverse electronic design requirements.

Common Mode Chokes Replacement Considerations

Consult official Venkel substitution guides for verified equivalents. Cross-reference impedance curves and physical dimensions before adopting alternative manufacturers' components to ensure compatibility with existing footprints and performance specifications.
