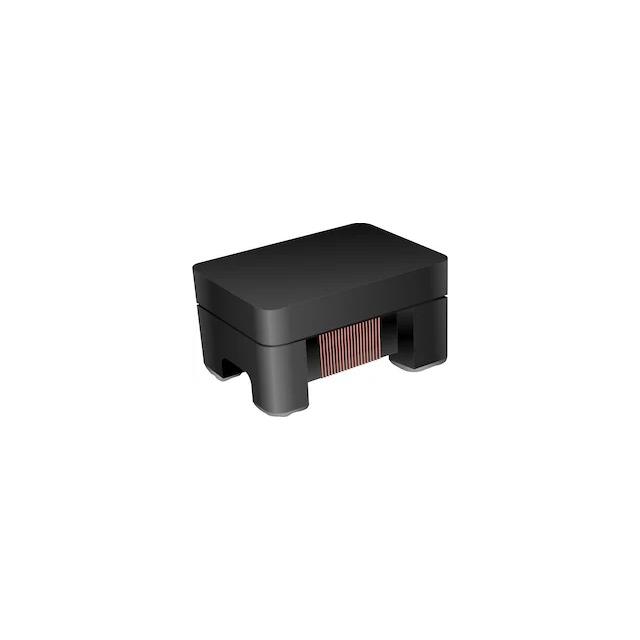

CMCC0805161MT-CT

$0.13

Description：CMC 330MA 2LN 160 OHM SMD
Series：CMCC
Mfr：Venkel
Package：Strip

SKU:f35fbb1db32f Category: Common Mode Chokes Brand: Venkel

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMCC0805161MT-CT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Venkel. Its product description is CMC 330MA 2LN 160 OHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CMCC0805161MT-CT

Description：CMC 330MA 2LN 160 OHM SMD
Series：CMCC
Mfr：Venkel
Package：Strip
Filter Type：-
Number of Lines：2
Current Rating (Max)：330mA
DC Resistance (DCR) (Max)：350mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max)：0.055" (1.40mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：160 Ohms @ 100 MHz
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for CMCC0805161MT-CT

CMCC0805161MT-CT

Common Mode Chokes Overview

The CMCC0805161MT-CT is a surface-mount common mode choke manufactured by Venkel. It features two lines with an impedance of 160 Ohms at 100 MHz and a current rating of 330 mA. The component utilizes a horizontal package configuration with four pads for mounting.

Common Mode Chokes Feature Summary

Provides common mode noise suppression in dual-line configurations
Designed for high-frequency signal integrity applications
Constructed with a compact horizontal surface-mount footprint

Common Mode Chokes Applications

High-speed data line filtering
Signal integrity protection in electronic circuits
Common mode noise reduction in communication interfaces

Common Mode Chokes Procurement Notes

Verify the specific impedance value and current rating against the official Venkel datasheet before procurement. Confirm that the horizontal package dimensions match the target PCB layout requirements to ensure proper mechanical fit and soldering reliability.

Common Mode Chokes Selection Notes

Select this component when a low-profile, dual-line choke is required for frequencies around 100 MHz. Ensure the operating current does not exceed the rated limit to maintain performance and prevent saturation effects in the magnetic core material.

Common Mode Chokes Part Context

This part belongs to Venkel's portfolio of passive components, specifically within the common mode choke category. It is designed for surface-mount technology (SMT) assembly processes, offering a compact solution for noise suppression in modern electronic devices requiring small form factors.

Common Mode Chokes Replacement Considerations

Consult official Venkel documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions.
