CMCC0805261ST-CT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Venkel. Its product description is CMC 300MA 2LN 260 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMCC0805261ST-CT
- Description：CMC 300MA 2LN 260 OHM SMD
- Series：CMCC
- Mfr：Venkel
- Package：Strip
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：300mA
- DC Resistance (DCR) (Max)：400mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.079" L x 0.047" W (2.00mm x 1.20mm)
- Height (Max)：0.055" (1.40mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：260 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CMCC0805261ST-CT
Common Mode Chokes Overview

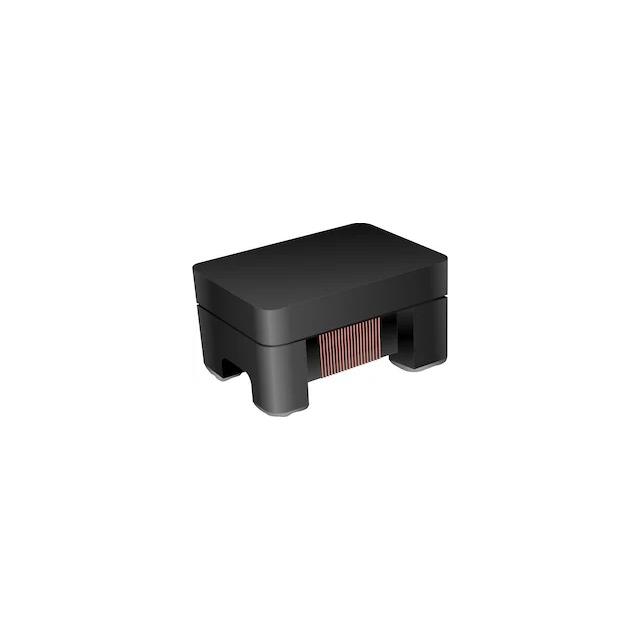

The Venkel CMCC0805261ST-CT is a surface-mount common mode choke designed for two-line signal protection. It features a compact 0805 package with a rated current of 300mA and a DC resistance of 400mΩ. The component provides an impedance of 260 Ohms at 100 MHz, ensuring effective noise suppression in high-frequency applications.
Common Mode Chokes Feature Summary
- Provides common mode noise attenuation for dual-line circuits
- Utilizes a compact surface-mount form factor for space-constrained designs
- Engineered for stable performance under specified current ratings
Common Mode Chokes Applications
- High-speed data line filtering
- USB interface noise suppression
- Signal integrity enhancement in communication modules
Common Mode Chokes Procurement Notes
Verify the complete part number including the suffix to confirm packaging configuration. Ensure compatibility with automated placement equipment regarding the specific reel or tape specifications provided by the manufacturer. Cross-reference the impedance and current ratings against the target circuit requirements before finalizing procurement.
Common Mode Chokes Selection Notes
Select this component when a low-profile solution is required for differential or dual-line noise reduction. Evaluate the 300mA current rating against peak operational loads to prevent saturation. Confirm that the 260 Ohm impedance at 100 MHz aligns with the frequency spectrum of the interference being mitigated.
Common Mode Chokes Part Context
This component belongs to Venkel's portfolio of passive magnetic components. It is part of a series offering various impedance values within the standard 0805 footprint, allowing designers to scale noise suppression capabilities while maintaining consistent board layout dimensions across different product variants.
Common Mode Chokes Replacement Considerations
Direct substitutes must match the 0805 footprint, 300mA current rating, and 260 Ohm impedance at 100 MHz. Verify pinout compatibility and thermal characteristics before integration.
