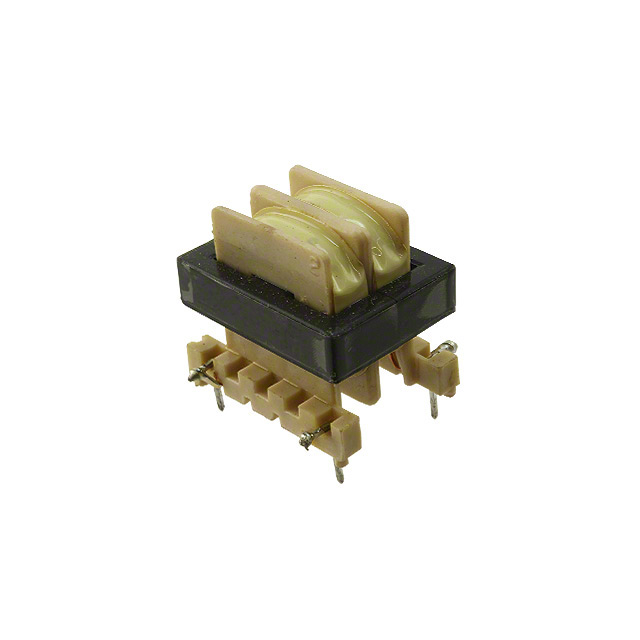

CME2425-2

$5.75

Description：CMC 2.37MH 2A 2LN THROUGH HOLE
Series：CME
Mfr：Triad Magnetics
Package：Bulk

SKU:0ef86335964f Category: Common Mode Chokes Brand: Triad Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CME2425-2 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 2.37MH 2A 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CME2425-2

Description：CMC 2.37MH 2A 2LN THROUGH HOLE
Series：CME
Mfr：Triad Magnetics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：80mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 80°C
Ratings：-
Approval Agency：CSA, IEC, UL, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：1.050" L x 1.050" W (26.67mm x 26.67mm)
Height (Max)：1.075" (27.31mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.37 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for CME2425-2

CME2425-2

Common Mode Chokes Overview

The Triad Magnetics CME2425-2 is a common mode filter choke designed for EMI suppression in power supply applications. It features an inductance of 2.37 mH and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 0.08 ohms and utilizes an E-core construction. It is available in a through-hole package with radial termination, suitable for PCB mounting.

Common Mode Chokes Feature Summary

Provides dependable EMI noise elimination common to all lines
Utilizes E-core construction for reliable performance
Designed for through-hole PCB mounting

Common Mode Chokes Applications

Power supply noise suppression
EMI filtering in electronic circuits
Common mode interference reduction

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official Triad Magnetics documentation to confirm exact electrical characteristics and packaging details. Ensure compatibility with required current ratings and physical mounting constraints before procurement.

Common Mode Chokes Selection Notes

Select this component based on the required 2.37 mH inductance and 2 A current handling capability. Confirm that the through-hole form factor aligns with the target PCB layout and that the E-core design meets the necessary EMI suppression standards for the application.

Common Mode Chokes Part Context

This component belongs to the CME series of common mode chokes from Triad Magnetics. These inductors are engineered for high dependability in suppressing electromagnetic interference across various power supply types, ensuring signal integrity by eliminating common mode noise.
