CME375-2-B

Common Mode Chokes Overview

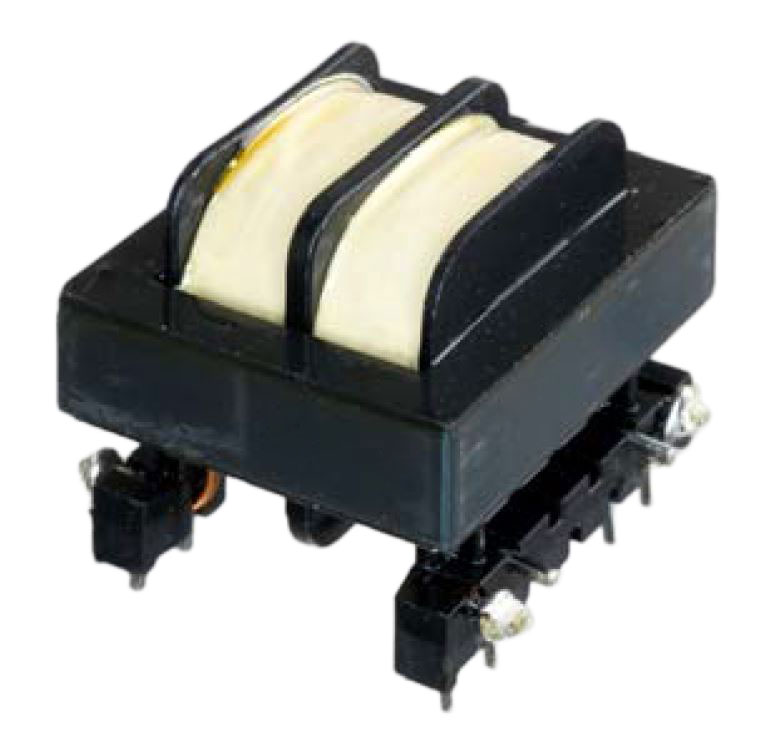

The Triad Magnetics CME375-2-B is a common mode filter choke from the CME series, designed for PCB mounting with radial termination. It features an inductance of 6.9 mH at 10 kHz and supports a maximum DC current of 4.4 A. The component has a maximum DC resistance of 77 mOhms and an AC voltage rating of 250 V. Its physical dimensions are 38.1 mm in length, 32 mm in width, and 15.24 mm in height.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for high-frequency circuits
• Supports high current handling up to 4.4 A
• Designed for direct PCB integration via radial leads

Common Mode Chokes Applications

• Switchmode power supply input filtering
• High frequency signal line protection
• Industrial equipment EMI suppression

Common Mode Chokes Procurement Notes

Verify the specific suffix -B against official Triad Magnetics documentation to confirm exact electrical tolerances and mechanical variations. Ensure the selected variant matches the required 250 V AC rating and 6.9 mH inductance specifications for the target circuit design.

Common Mode Chokes Selection Notes

Select this component when high current capacity is required alongside significant common mode attenuation. The radial lead configuration facilitates through-hole assembly. Confirm that the 77 mOhm DCR meets the thermal and efficiency requirements of the application.

Common Mode Chokes Part Context

This part belongs to the Triad Magnetics CME series of switchmode and high-frequency common mode inductors. These components are engineered for robust performance in demanding electronic environments, offering reliable noise filtration for power and data lines.

Common Mode Chokes Replacement Considerations

Cross-reference with CME375-2 for standard tolerance variants. Verify compatibility with CME375-5-B if higher inductance is acceptable. Ensure substitute parts maintain the 4.4 A current rating and radial package style.
