Common Mode Chokes Overview

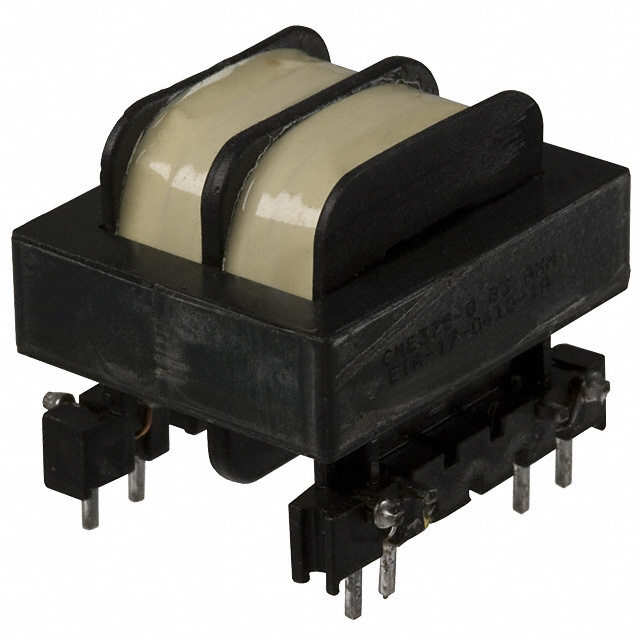

The Triad Magnetics CME375-2 is a common mode filter choke designed for EMI suppression in power supply applications. It features an inductance of 6.9 mH with a tolerance of 10%. The component supports a maximum DC current of 4.4 A and exhibits a maximum DC resistance of 77 mohms. It utilizes a radial termination style for PCB mounting. Physical dimensions include a length of 38.1 mm, width of 32 mm, and height of 15.24 mm.

Common Mode Chokes Feature Summary

• Provides common mode EMI noise suppression for power lines
• Designed for dependable performance in various power supply types

Common Mode Chokes Applications

• Power supply noise elimination
• Common mode line filtering

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number CME375-2 against official Triad Magnetics documentation to confirm electrical parameters such as 6.9 mH inductance and 4.4 A current rating. Ensure compatibility with PCB mounting requirements and check for RoHS compliance status in the latest datasheet before integration.

Common Mode Chokes Selection Notes

Select this component when high current handling up to 4.4 A is required alongside significant common mode inductance. The radial package suits through-hole PCB layouts. Compare against other CME series variants if different inductance or current thresholds are needed for the specific circuit design.

Common Mode Chokes Part Context

This component belongs to the CME series of common mode chokes manufactured by Triad Magnetics. These inductors are categorized under inductors, chokes, and coils. The series focuses on providing robust electromagnetic interference suppression solutions for electronic equipment requiring stable power line filtering.

Common Mode Chokes Replacement Considerations

Other models within the Triad Magnetics CME375 series, such as CME375-3 or CME375-6, offer alternative inductance and current ratings while maintaining similar physical footprints.
