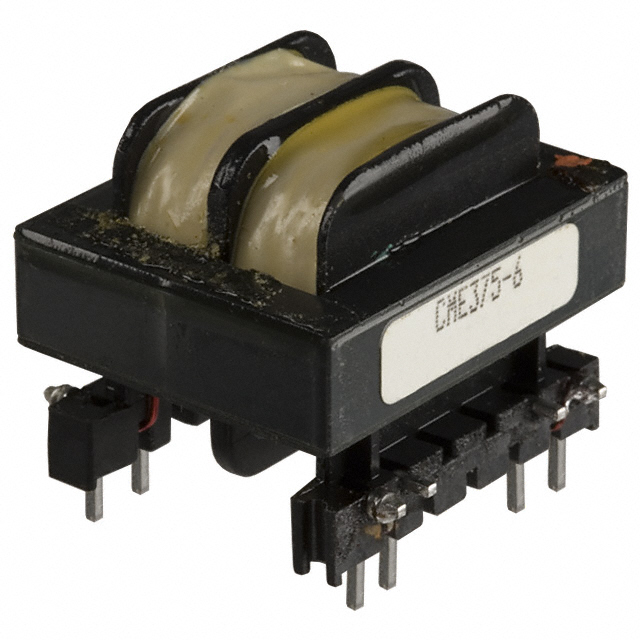

CME375-6 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 43.6MH 1.75A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CME375-6
- Description：CMC 43.6MH 1.75A 2LN TH
- Series：CME
- Mfr：Triad Magnetics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.75A
- DC Resistance (DCR) (Max)：489mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 80°C
- Ratings：-
- Approval Agency：CSA, IEC, UL, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.500" L x 1.260" W (38.10mm x 32.00mm)
- Height (Max)：1.180" (29.97mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：43.6 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CME375-6
Common Mode Chokes Overview
The Triad Magnetics CME375-6 is a common mode filter choke from the CME series, designed for PCB mounting with radial termination. It features an inductance of 43.6 mH at 10 kHz with a tolerance of 10%. The component supports a maximum DC current of 1.75 A and has a maximum DC resistance of 489 mOhms. It operates within a temperature range of -40°C to 80°C and utilizes a vertical package with four PC pins.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for two-line circuits
- Designed for through-hole PCB mounting with radial leads
- Constructed for operation in industrial environments
Common Mode Chokes Applications
- Power supply input filtering
- EMI suppression in electronic equipment
- Industrial control systems
Common Mode Chokes Procurement Notes
Verify the specific part number suffix when ordering, as variants such as CME375-6-B may exist with different electrical characteristics. Confirm that the required inductance value of 43.6 mH and current rating of 1.75 A align with the circuit design requirements before procurement.
Common Mode Chokes Selection Notes
Select this component when a high inductance value of 43.6 mH is required for effective common mode noise attenuation. Ensure the application current does not exceed 1.75 A to maintain performance. The radial through-hole package is suitable for standard PCB assembly processes requiring robust mechanical fixation.
Common Mode Chokes Part Context
This component belongs to the Triad Magnetics CME series of common mode chokes. These components are engineered to suppress electromagnetic interference in dual-line configurations. The series offers various inductance values tailored for different power line filtering applications across industrial and commercial sectors.
Common Mode Chokes Replacement Considerations
Cross-reference with other Triad Magnetics CME series parts for alternative inductance values. Verify pin compatibility and physical dimensions against existing board layouts when substituting.
