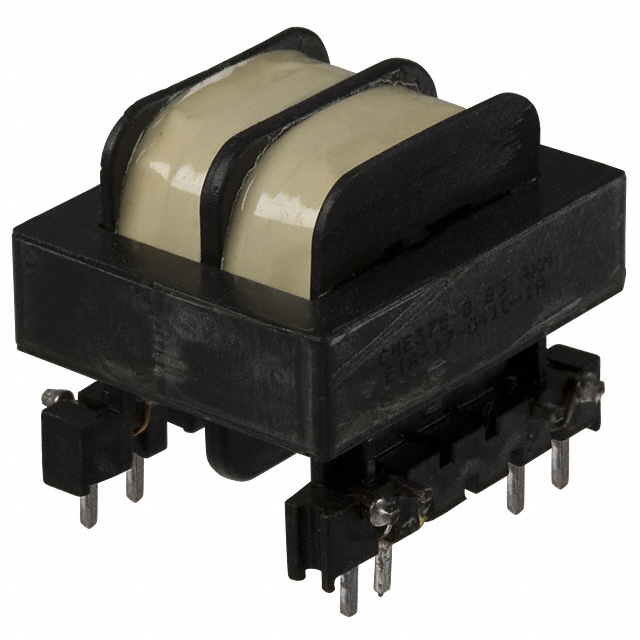

CME375-8 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 111.6MH 1.1A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CME375-8
- Description：CMC 111.6MH 1.1A 2LN TH
- Series：CME
- Mfr：Triad Magnetics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.1A
- DC Resistance (DCR) (Max)：1.24Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 80°C
- Ratings：-
- Approval Agency：CSA, IEC, UL, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.500" L x 1.260" W (38.10mm x 32.00mm)
- Height (Max)：1.180" (29.97mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：111.6 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CME375-8
Common Mode Chokes Overview
The Triad Magnetics CME375-8 is a common mode filter choke designed for PCB mounting. It features radial termination and operates with a maximum DC current of 1.1 A. The component provides an inductance of 111.6 mH at 10 kHz with a tolerance of 10%. Its maximum DC resistance is 1.24 Ohms, and it has an AC voltage rating of 250 V. Physical dimensions are 38.1 mm in length, 32 mm in width, and 15.24 mm in height.
Common Mode Chokes Feature Summary
- Provides high common mode noise suppression through significant inductance values suitable for filtering applications.
Common Mode Chokes Applications
- Switchmode power supply input filtering
- Common mode interference reduction in electronic circuits
Common Mode Chokes Procurement Notes
Verify the specific part number CME375-8 against official Triad Magnetics documentation to confirm electrical parameters such as 111.6 mH inductance and 1.1 A current rating. Ensure compatibility with PCB mounting requirements and check for RoHS compliance status in the latest datasheet before procurement.
Common Mode Chokes Selection Notes
Select this component when high inductance is required for common mode noise attenuation in space-constrained designs. The radial leaded package facilitates through-hole PCB integration. Verify that the 1.1 A current rating meets the circuit's operational demands and that the 1.24 Ohm DCR is acceptable for the application's loss budget.
Common Mode Chokes Part Context
The CME375-8 belongs to the CME series of switchmode/high frequency common mode inductors manufactured by Triad Magnetics. This series is engineered for power line filtering and EMI suppression in various electronic equipment. The component shares physical dimensions with other variants in the CME375 family but differs in electrical characteristics.
Common Mode Chokes Replacement Considerations
Direct substitutes within the same series include CME375-2 and CME375-6, though their inductance and current ratings differ significantly. Cross-referencing with other manufacturers requires matching inductance, current rating, and physical footprint specifications.
