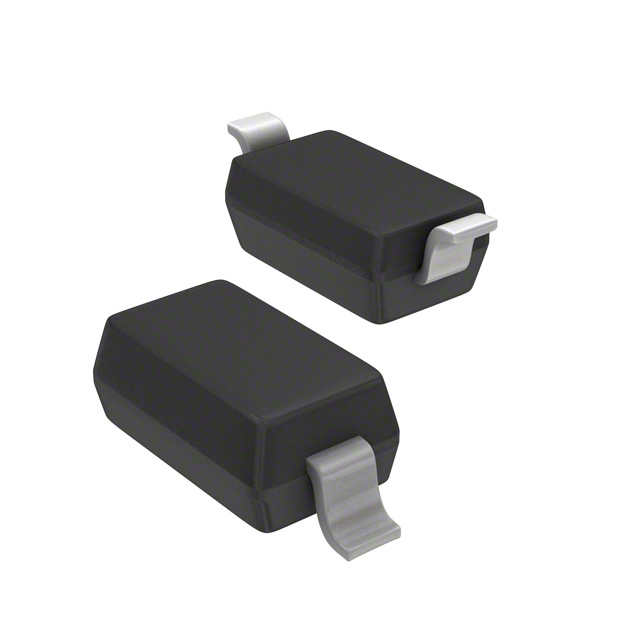

CMHZ5233B TR PBFREE

$0.43

Description：DIODE ZENER 6V 500MW SOD123
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b4465bd4cb7e Category: Single Zener Diodes Brand: Central Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMHZ5233B TR PBFREE is listed in the Single Zener Diodes range at ChipApex. The manufacturer field lists Central Semiconductor Corp. Its product description is DIODE ZENER 6V 500MW SOD123. Review the specifications below when checking this part for your BOM.

Single Zener Diodes specifications for CMHZ5233B TR PBFREE

Description：DIODE ZENER 6V 500MW SOD123
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR),Cut Tape (CT)
Voltage - Zener (Nom) (Vz)：6 V
Tolerance：±5%
Power - Max：500 mW
Impedance (Max) (Zzt)：7 Ohms
Current - Reverse Leakage @ Vr：5 µA @ 3.5 V
Operating Temperature：-65°C ~ 150°C
Mounting Type：Surface Mount
Package / Case：SOD-123
Voltage - Forward (Vf) (Max) @ If：900 mV @ 10 mA
Grade：-
Qualification：-

Single Zener Diodes datasheet and documents for CMHZ5233B TR PBFREE

CMHZ5233B TR PBFREE

Single Zener Diodes Overview

The CMHZ5233B TR PBFREE is a surface-mount silicon Zener diode from Central Semiconductor Corp, housed in an SOD-123 package. It provides a nominal voltage of 6.0 V with a tolerance range of 5.700 V to 6.300 V at a test current of 20 mA. The device dissipates up to 500 mW and features a maximum dynamic impedance of 7.0 Ω. It operates within a junction temperature range of -65 °C to +150 °C and includes a positive temperature coefficient of +0.038 %/°C.

Single Zener Diodes Feature Summary

Surface-mount construction in an SOD-123 package for automated assembly
High-quality voltage regulation using planar die technology
Lead-free plating option available via specific ordering suffix

Single Zener Diodes Applications

Industrial equipment voltage regulation
Commercial electronic circuit protection
Computer system power management

Single Zener Diodes Procurement Notes

Verify the exact part number against official manufacturer documentation before procurement. Confirm that the 'TR' suffix indicates tape-and-reel packaging and the 'PBFREE' suffix specifies lead-free plating requirements. Ensure compatibility with standard SOD-123 footprints during component sourcing.

Single Zener Diodes Selection Notes

Select this component when a precise 6.0 V reference or regulator is required in a compact surface-mount design. The 5% tolerance suits general-purpose applications where tight precision is not critical. Verify thermal dissipation capabilities relative to ambient operating conditions.

Single Zener Diodes Part Context

This device belongs to the CMHZ5221B through CMHZ5267B series of surface-mount silicon Zener diodes. The series covers a voltage range from 2.4 V to 75 V, all sharing the same SOD-123 form factor and 500 mW power rating. The CMHZ5233B specifically targets the 6 V segment of this broad portfolio.
