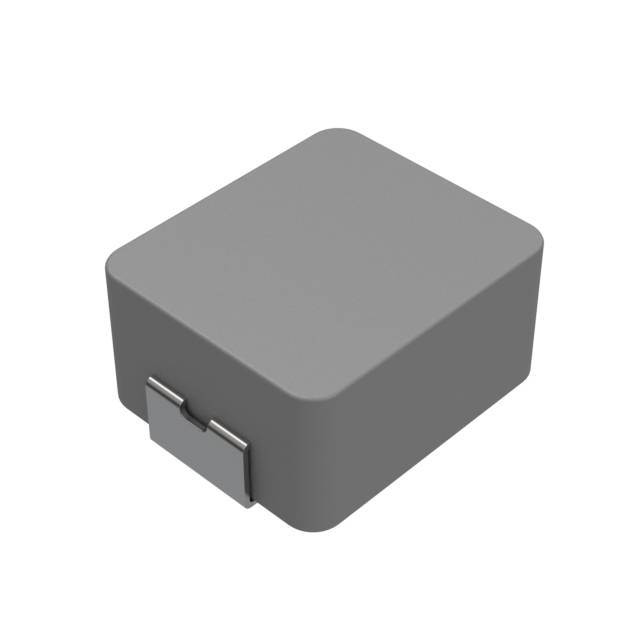

CMLB063T-4R7MS is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delta Electronics/Cyntec. Its product description is FIXED IND 4.7UH 6A 33 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CMLB063T-4R7MS
- Description：FIXED IND 4.7UH 6A 33 MOHM SMD
- Series：CMLB063T
- Mfr：Delta Electronics/Cyntec
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：Metal
- Inductance：4.7 µH
- Tolerance：±20%
- Current Rating (Amps)：6:00 AM
- Current - Saturation (Isat)：5.5A
- Shielding：Shielded
- DC Resistance (DCR)：33mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.274" L x 0.260" W (6.95mm x 6.60mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：-
Fixed Inductors datasheet and documents for CMLB063T-4R7MS
Fixed Inductors Overview
The CMLB063T-4R7MS is a shielded fixed power inductor manufactured by Delta Electronics/Cyntec. It features a metal core and surface mount installation type within a nonstandard package measuring 6.95mm x 6.60mm x 3.00mm. The component provides an inductance of 4.7 µH with a tolerance of ±20%. It supports a rated current of 6 A and a saturation current (Isat) of 6.5 A. The maximum DC resistance (DCR) is 33 mOhm, tested at a frequency of 100 kHz. Operating temperature range spans from -55°C to 125°C.
Fixed Inductors Feature Summary
- Shielded construction utilizing a metal core to minimize electromagnetic interference
- High current handling capability with defined saturation limits for power applications
- Surface mount design suitable for automated PCB assembly processes
Fixed Inductors Applications
- Consumer power supply circuits
- DC-DC converter input/output filtering
- General purpose power electronics
Fixed Inductors Procurement Notes
Verify the specific manufacturer part number against official datasheets to confirm electrical parameters and physical dimensions. Ensure compatibility with RoHS3 compliance requirements and check for any product phase-out notifications or obsolescence status prior to finalizing procurement decisions.
Fixed Inductors Selection Notes
Select this component based on the required 4.7 µH inductance value and 6 A rated current specifications. Consider the nonstandard footprint dimensions and 3.00mm height when designing the PCB layout. Verify that the 33 mOhm DCR meets system efficiency targets and that the operating temperature range aligns with environmental conditions.
Fixed Inductors Part Context
This component belongs to the CMLB063T series of shielded power inductors from Delta Electronics/Cyntec. The series is designed for consumer power applications requiring compact size and high current density. Similar parts in the series include variants with different inductance values such as CMLB063T-1R0MS and CMLB063T-8R2MS, sharing the same physical package constraints.
Fixed Inductors Replacement Considerations
- PA4341.102NLT
- HPAL1V0630-1R0-R
Fixed Inductors FAQ
What is the saturation current (Isat) for the CMLB063T-4R7MS?
The saturation current is 6.5 A.
What is the maximum DC resistance (DCR) specified for this inductor?
The maximum DC resistance is 33 mOhm.
