CMLS135T-1R0MS

Fixed Inductors Overview

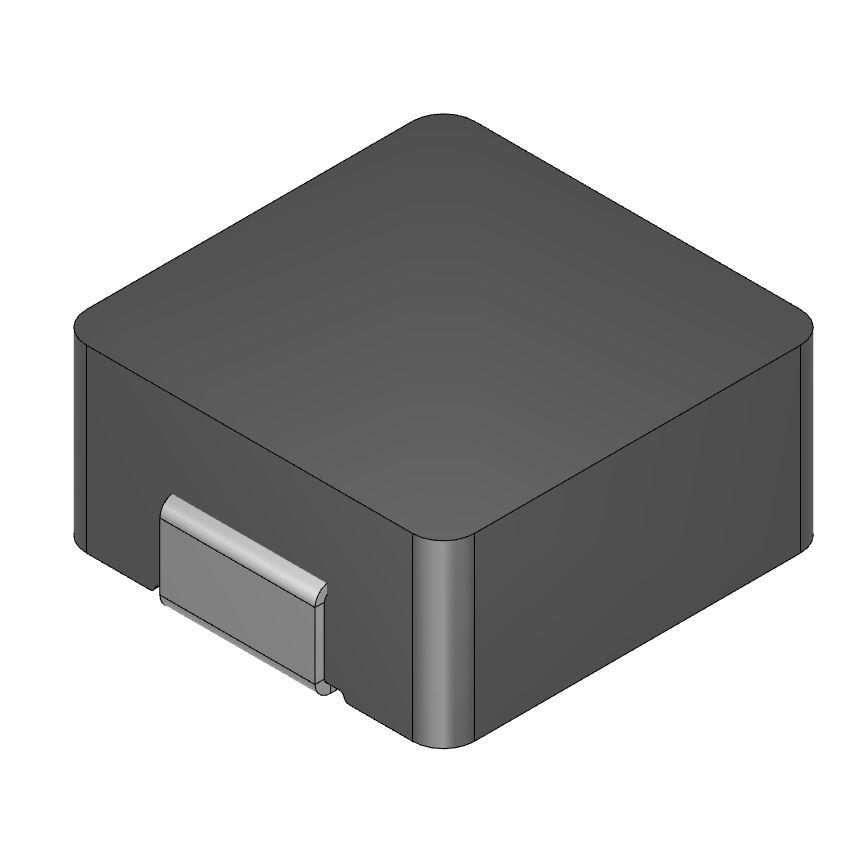

The CMLS135T-1R0MS is a surface-mount power inductor manufactured by Delta Electronics/Cyntec. It features a molded construction with an inductance of 1 µH and a tolerance of ±20%. The component supports a maximum current rating of 26 A and a saturation current of 50 A, with a maximum DC resistance of 2.5 mΩ. Physical dimensions are 13.8 mm x 12.8 mm x 5 mm. It utilizes SMD/SMT termination and is packaged in reels for PCB mounting.

Fixed Inductors Feature Summary

• Molded construction design
• High current handling capability
• Surface-mount package format

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter modules
• General electronic equipment requiring high-current filtering

Fixed Inductors Procurement Notes

Verify the specific manufacturer designation, as sources list both Cyntec and Delta Electronics/Cyntec. Confirm the exact datasheet revision (e.g., A3) to ensure parameter accuracy. Check regional availability restrictions, as some distributors indicate limited supply status. Ensure the ordering suffix matches the required tolerance and packaging configuration.

Fixed Inductors Selection Notes

Select this component when a 1 µH inductance value is required with significant current capacity up to 50 A saturation. The low DC resistance of 2.5 mΩ minimizes conduction losses in high-current paths. The non-shielded molded design offers a compact footprint suitable for space-constrained PCB layouts where magnetic shielding is not strictly mandated.

Fixed Inductors Part Context

This part belongs to the CMLS135T series of power inductors from Cyntec. The series includes variants with different inductance values, such as the CMLS135T-R56MS (0.56 µH). These components are designed for surface-mount technology applications, providing a standardized form factor for power electronics designs.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility based on inductance, current ratings, and physical dimensions before substituting with other manufacturers' products.
