CMS2-3-R is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is CMC 57UH 3.6A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMS2-3-R
- Description：CMC 57UH 3.6A 2LN SMD
- Series：CMS
- Mfr：Eaton - Electronics Division
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3.6A
- DC Resistance (DCR) (Max)：12mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 160°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.350" L x 0.350" W (8.90mm x 8.90mm)
- Height (Max)：0.236" (6.00mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：57 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for CMS2-3-R
Common Mode Chokes Overview

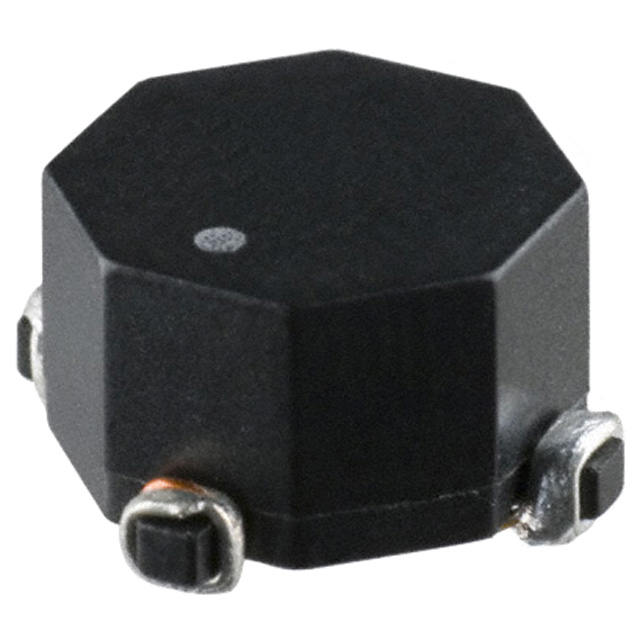

The CMS2-3-R is a surface mount common mode choke manufactured by Eaton - Electronics Division. It features an inductance of 57 µH measured at 100 kHz and supports a rated current of 3.6 A. The component has a typical DC resistance (DCR) of 12 mΩ. It utilizes a two-line configuration with a horizontal package design and four PCB pins. The physical dimensions are 0.350 inches in length, 0.350 inches in width, and a maximum height of 0.236 inches.
Common Mode Chokes Feature Summary
- Surface mount construction for automated assembly
- Two-line common mode filtering capability
- Horizontal package orientation with four pins
Common Mode Chokes Applications
- Power line noise suppression
- Common mode interference reduction in electronic circuits
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official Eaton documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with surface mount assembly processes. Check for any recent product change notices or lifecycle status updates from the manufacturer before finalizing procurement plans.
Common Mode Chokes Selection Notes
Select this component based on the required 57 µH inductance at 100 kHz and 3.6 A current rating. Confirm that the surface mount form factor fits the board layout constraints. Verify that the horizontal package style aligns with the mechanical design requirements for the target application.
Common Mode Chokes Part Context
This component belongs to the CMS series of common mode chokes produced by Eaton - Electronics Division. These components are designed for electromagnetic interference suppression in power lines. The series offers various inductance values and current ratings to suit different circuit protection needs.
Common Mode Chokes Replacement Considerations
Direct substitute part numbers are not confirmed in the provided source material. Consult official Eaton documentation for verified alternatives if this specific model is unavailable.
