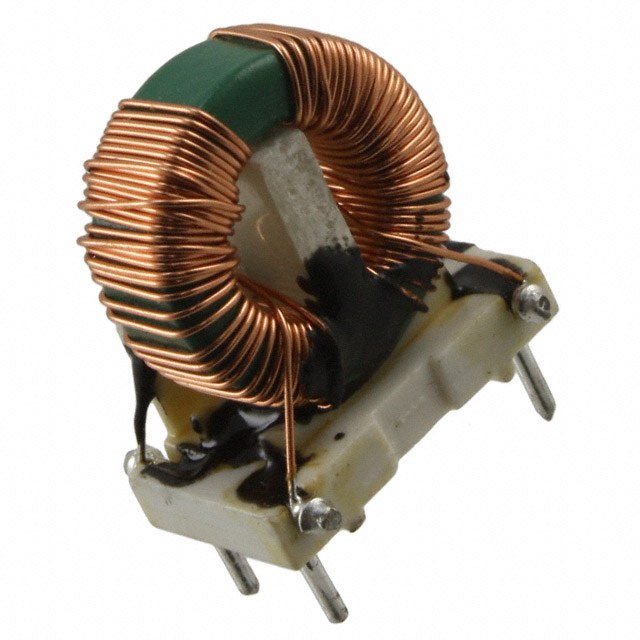

CMT-8101 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 4MH 1.7A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMT-8101
- Description：CMC 4MH 1.7A 2LN TH
- Series：CMT
- Mfr：Triad Magnetics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.7A
- DC Resistance (DCR) (Max)：173mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：1500V (1.5kV)
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：CSA, IEC, UL, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.760" L x 0.615" W (19.30mm x 15.62mm)
- Height (Max)：0.900" (22.86mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：4 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CMT-8101
Common Mode Chokes Overview
The CMT-8101 is a common mode inductor manufactured by Triad Magnetics. It features a minimum inductance of 4 mH at 1 kHz and supports a maximum DC current of 1.7 A. The component has a maximum DC resistance of 173 mOhms. Physical dimensions include a length of 0.9 inches and a width of 0.76 inches.
Common Mode Chokes Feature Summary
- Provides common mode noise filtering for two-line circuits
- Designed for through-hole mounting applications
Common Mode Chokes Applications
- Power supply input filtering
- Signal line noise suppression
- EMI reduction in electronic equipment
Common Mode Chokes Procurement Notes
Verify the specific part number CMT-8101 against official Triad Magnetics documentation to confirm electrical parameters such as 4 mH inductance and 1.7 A current rating. Ensure compatibility with through-hole PCB layouts considering the specified physical dimensions. Confirm RoHS compliance status if required for your manufacturing process.
Common Mode Chokes Selection Notes
Select this component when a common mode choke with 4 mH inductance and 1.7 A current handling is required. Consider the 173 mOhm DC resistance for power loss calculations. Verify that the through-hole package fits the available PCB space, noting the 0.9-inch length and 0.76-inch width constraints.
Common Mode Chokes Part Context
The CMT series from Triad Magnetics includes various common mode chokes designed for different current and inductance requirements. The CMT-8101 is part of this lineup, offering specific electrical characteristics suitable for general-purpose noise suppression in two-line configurations.
Common Mode Chokes Replacement Considerations
Check Triad Magnetics datasheets for direct replacements within the CMT series or equivalent components from other manufacturers with matching 4 mH inductance, 1.7 A current, and similar physical dimensions.
