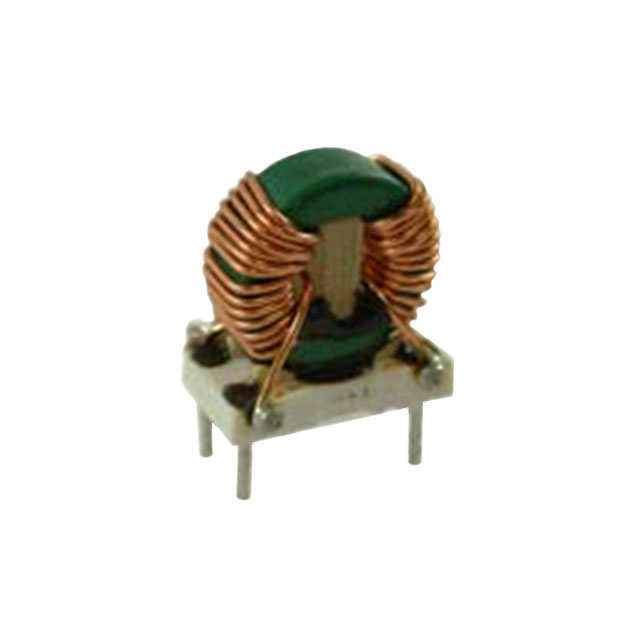

CMT-8102-B

$4.44

Description：CMC 2.5MH 2.4A 2LN THROUGH HOLE
Series：CMT
Mfr：Triad Magnetics
Package：Bulk

SKU:53224b7ba965 Category: Common Mode Chokes Brand: Triad Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMT-8102-B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 2.5MH 2.4A 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CMT-8102-B

Description：CMC 2.5MH 2.4A 2LN THROUGH HOLE
Series：CMT
Mfr：Triad Magnetics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.4A
DC Resistance (DCR) (Max)：90mOhm
Voltage Rating - DC：-
Voltage Rating - AC：1500V (1.5kV)
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：CSA, IEC, UL, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：0.760" L x 0.615" W (19.30mm x 15.62mm)
Height (Max)：0.900" (22.86mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.5 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for CMT-8102-B

CMT-8102-B

Common Mode Chokes Overview

The CMT-8102-B is a two-line common mode choke manufactured by Triad Magnetics, designed for through-hole PCB mounting. It features an inductance of 2.5 mH at 1 kHz and supports a maximum DC current of 2.4 A. The component has a maximum DC resistance of 90 milliohms and an AC rated voltage of 1500 V. Its physical dimensions are 19.30 mm in length, 15.62 mm in width, and a maximum height of 22.86 mm. The unit operates within a temperature range of -55°C to 105°C.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for power lines with high inductance characteristics.
Supports high insulation voltage ratings suitable for mains-connected applications.
Constructed for reliable operation across extended industrial temperature ranges.

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in electronic equipment
AC line noise reduction

Common Mode Chokes Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact electrical tolerances and certification status. Ensure that the through-hole footprint matches the target PCB layout dimensions. Confirm compliance requirements such as RoHS and UL/IEC standards align with the final product specifications before procurement.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode interference rejection for single-phase AC inputs. Evaluate the 2.4 A current rating against peak load conditions to prevent saturation. Consider the 90 milliohm DC resistance impact on overall system efficiency and thermal management during continuous operation.

Common Mode Chokes Part Context

This part belongs to the CMT series of common mode chokes from Triad Magnetics. The series offers various inductance values and current ratings tailored for different power line filtering needs. These components are widely used in general-purpose electronics to meet electromagnetic compatibility regulations.
