CMT-8102

Common Mode Chokes Overview

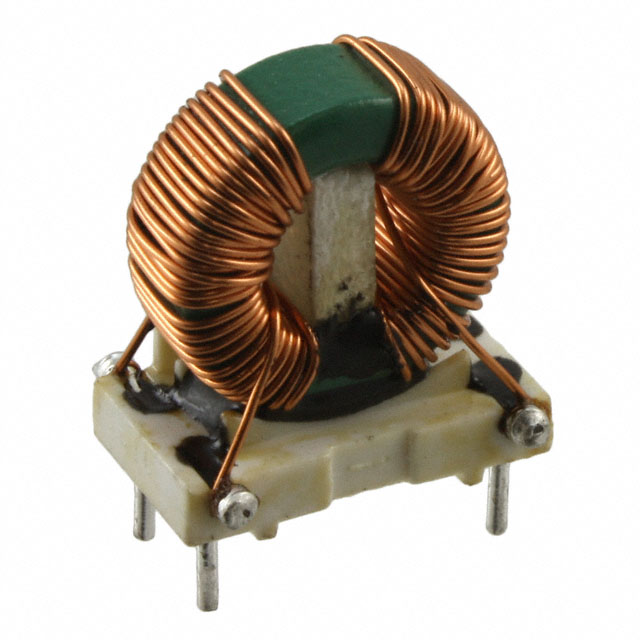

The Triad Magnetics CMT-8102 is a through-hole common mode inductor designed for EMI suppression in power supply applications. It features an inductance of 2.5 mH at 1 kHz and supports a maximum DC current of 2.4 A. The component has a maximum DC resistance of 90 milliohms and operates within a temperature range of -55°C to 105°C. Rated for 1500V AC, it utilizes a vertical package with four pins.

Common Mode Chokes Feature Summary

• Provides superior EMI suppression for noise elimination in power lines
• Designed for dependable performance in various power supply types
• Supports high voltage isolation requirements

Common Mode Chokes Applications

• Power supply noise filtering
• EMI suppression circuits
• Audio and signal transformer applications

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official documentation to ensure correct electrical ratings. Confirm that the required inductance and current specifications match the design needs. Check for RoHS compliance status and relevant safety certifications such as UL or CSA before procurement.

Common Mode Chokes Selection Notes

Select this component when a 2.5 mH inductance at 1 kHz is required for common mode noise reduction. Ensure the circuit current does not exceed 2.4 A. Verify that the through-hole mounting style and physical dimensions fit the PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to the CMT series of common mode inductors from Triad Magnetics. The series offers a range of inductance values for EMI suppression. These inductors are engineered for use in power line filtering to eliminate noise common to all lines.

Common Mode Chokes Replacement Considerations

Consult official datasheets for direct substitutes within the CMT series. Verify that any alternative part matches the 2.5 mH inductance, 2.4 A current rating, and 90 milliohm DCR specifications.
