CMT-8103-B

Common Mode Chokes Overview

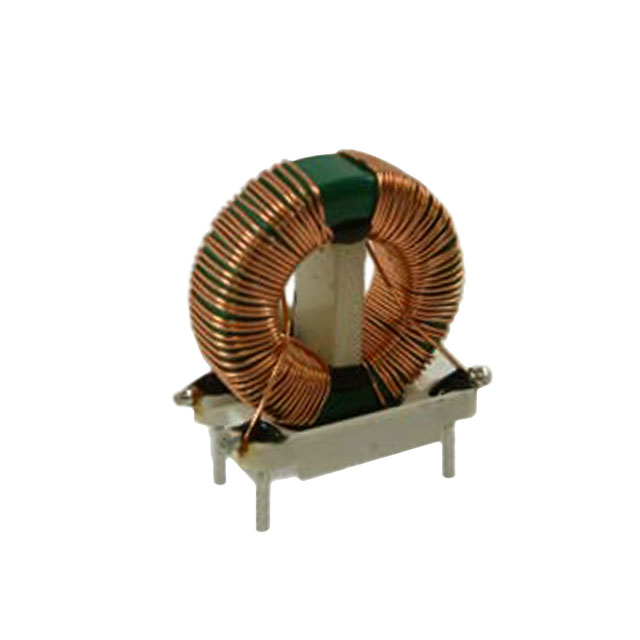

The Triad Magnetics CMT-8103-B is a through-hole common mode choke designed for power line applications. It features an inductance of 1 mH measured at 1 kHz and supports a maximum DC current of 4.8 A. The component exhibits a maximum DC resistance (DCR) of 22 mOhms per line. It is rated for an AC voltage of 1500 V and operates within a temperature range of -55°C to +105°C.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for two-line power circuits
• Engineered with high thermal stability for reliable operation in demanding environments
• Constructed with copper windings to ensure low insertion loss and efficient performance

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment EMI suppression
• Consumer electronics noise reduction

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact electrical tolerances and packaging configurations. Ensure that the selected variant matches the required lead time and production cycle constraints for your specific project timeline. Cross-reference the datasheet parameters with your system requirements before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a 1 mH inductance at 1 kHz is required for two-line power filtering. The 4.8 A current rating and 22 mOhm DCR make it suitable for moderate power applications. Verify that the 1500 V AC rating meets the insulation requirements of the target circuit design.

Common Mode Chokes Part Context

This part belongs to the CMT series of common mode chokes from Triad Magnetics. These components are widely used for electromagnetic interference suppression in power lines. The series offers various inductance and current ratings to suit different power handling needs across industrial and consumer sectors.

Common Mode Chokes Replacement Considerations

Consult official substitution lists for verified equivalents. Generic replacements may not match the specific 1 mH @ 1 kHz or 4.8 A specifications.
