CMT-8103

Common Mode Chokes Overview

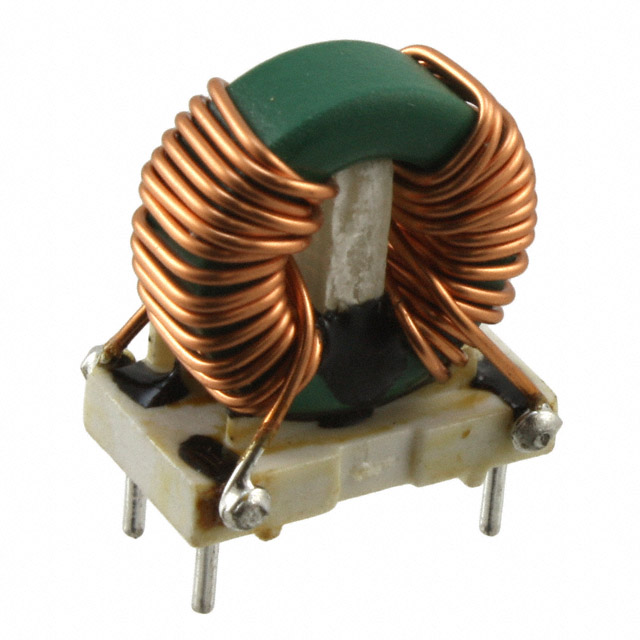

The Triad Magnetics CMT-8103 is a through-hole common mode inductor designed for power line applications. It features an inductance of 1 mH minimum at 1 kHz and supports a maximum DC current of 4.8 A. The component has a maximum DC resistance of 22 mOhms and an AC voltage rating of 1500 V. It operates within a temperature range starting from -55°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line power circuits
• Constructed for reliable through-hole mounting on printed circuit boards
• Engineered to handle high direct current loads with low impedance

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment noise reduction
• Consumer electronics EMI suppression

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix, such as -B or -T, as these may indicate variations in packaging or lead time. Confirm that the 1500V AC rating meets your system isolation requirements. Ensure the 4.8A current rating accommodates peak load conditions without saturation. Check mechanical dimensions against your PCB footprint constraints before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a 1 mH inductance value is required for common mode rejection at 1 kHz. The 4.8A current rating suits moderate power applications. Consider the through-hole package if surface mount options are unsuitable for your assembly process. Verify thermal performance under continuous load conditions to ensure compliance with operating temperature limits.

Common Mode Chokes Part Context

This part belongs to the CMT series of common mode chokes manufactured by Triad Magnetics. These components are typically used to attenuate electromagnetic interference in dual-line configurations. The series offers various inductance and current ratings to suit different power line filtering needs across industrial and commercial sectors.

Common Mode Chokes Replacement Considerations

The CMT-8103-B is a documented variant of this component. Verify compatibility regarding packaging and electrical specifications before substitution. No other cross-model substitutes are confirmed in available public documentation.
