CMT-8104

Common Mode Chokes Overview

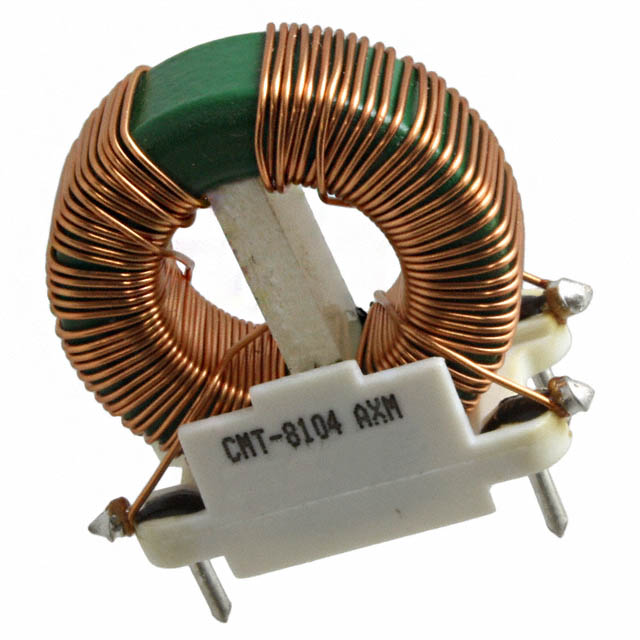

The Triad Magnetics CMT-8104 is a through-hole common mode choke designed for power line applications. It features an inductance of 10 mH measured at a test frequency of 1 kHz and supports a maximum current rating of 2.4 A. The component exhibits a maximum DC resistance of 170 mOhm. It is constructed as an unshielded, two-line filter intended for electromagnetic interference suppression in electronic circuits.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for dual-line power circuits
• Utilizes through-hole mounting for standard PCB integration
• Operates with high current capacity suitable for power line protection

Common Mode Chokes Applications

• Power line EMI suppression
• Electromagnetic interference filtering
• Common mode noise reduction in electronic assemblies

Common Mode Chokes Procurement Notes

Verify the specific suffix designation when ordering, as variants such as CMT-8104-B exist within the product family. Confirm that the required inductance and current ratings align with the system design specifications before procurement. Ensure compatibility with through-hole assembly processes and verify compliance requirements for the target market.

Common Mode Chokes Selection Notes

Select this component for applications requiring robust common mode chokes with defined inductance values. The 2.4 A current rating makes it suitable for moderate power line filtering tasks. Consider the unshielded construction when evaluating spatial constraints and magnetic coupling requirements within the final enclosure design.

Common Mode Chokes Part Context

This component belongs to the CMT series of common mode filters manufactured by Triad Magnetics. The series offers various inductance and current options tailored for different power line filtering needs. The CMT-8104 specifically addresses requirements for 10 mH inductance with significant current handling capabilities.

Common Mode Chokes Replacement Considerations

The CMT-8104-B is a documented variant within the same product line. Verify electrical parameters and physical dimensions when substituting to ensure functional equivalence in the circuit design.
